'Harmony', a Beneteau Oceanis 393 is for Sale!

Specifications

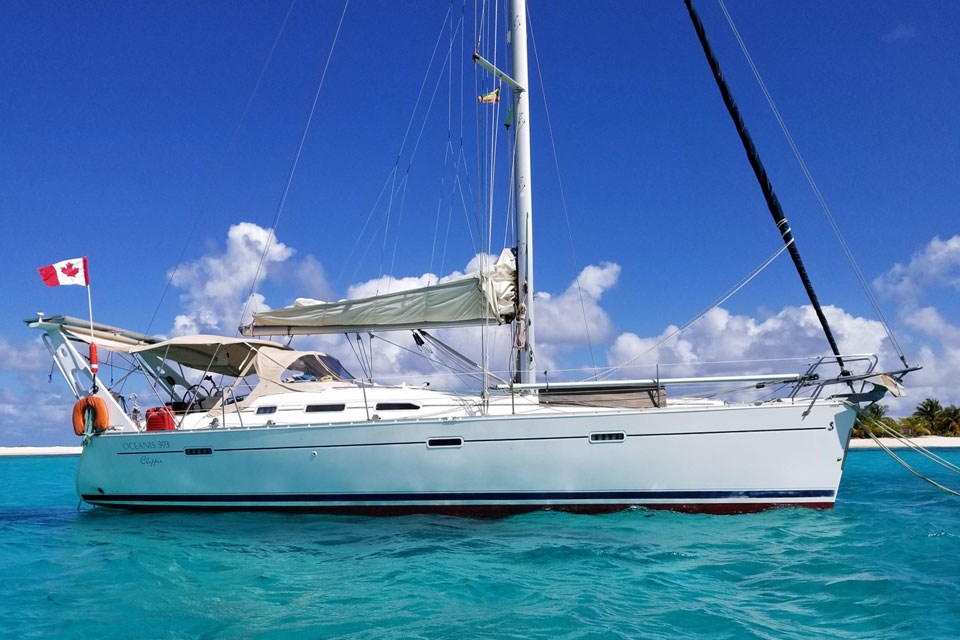

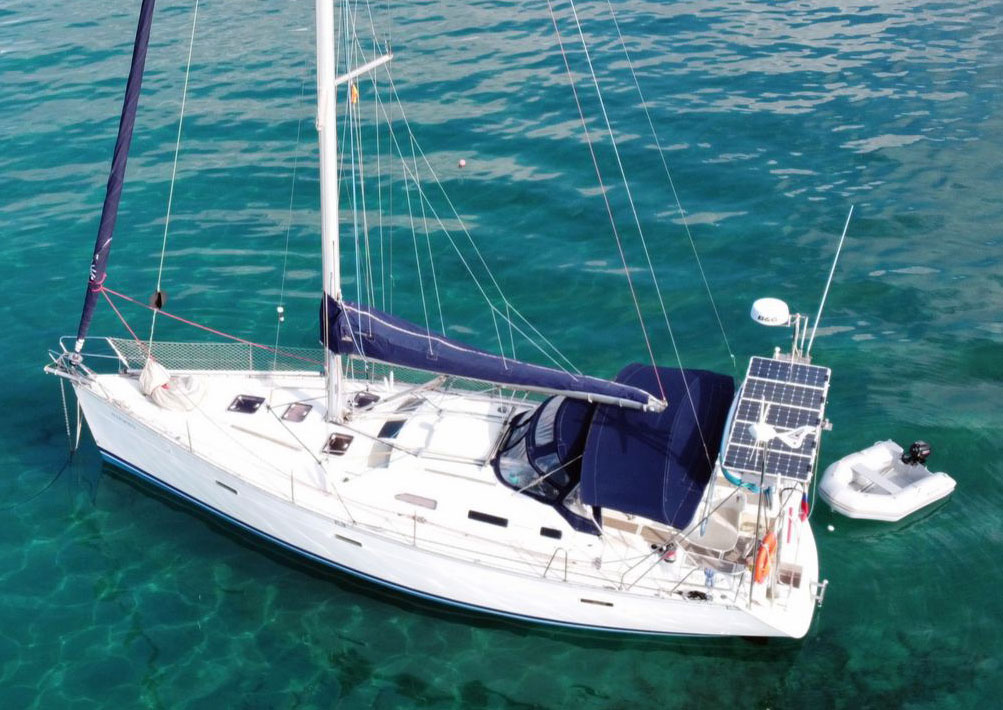

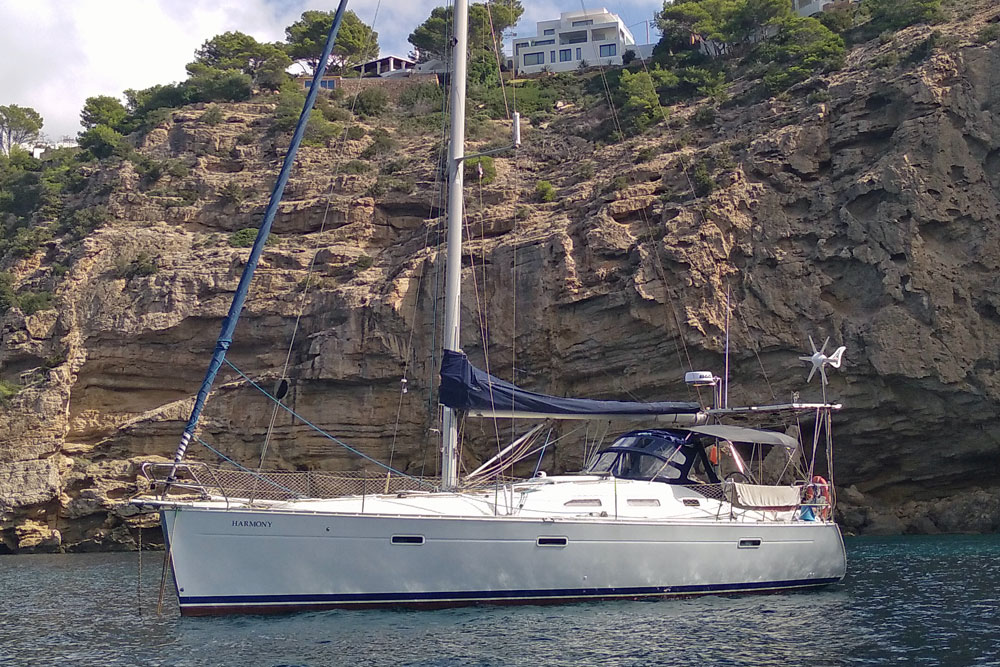

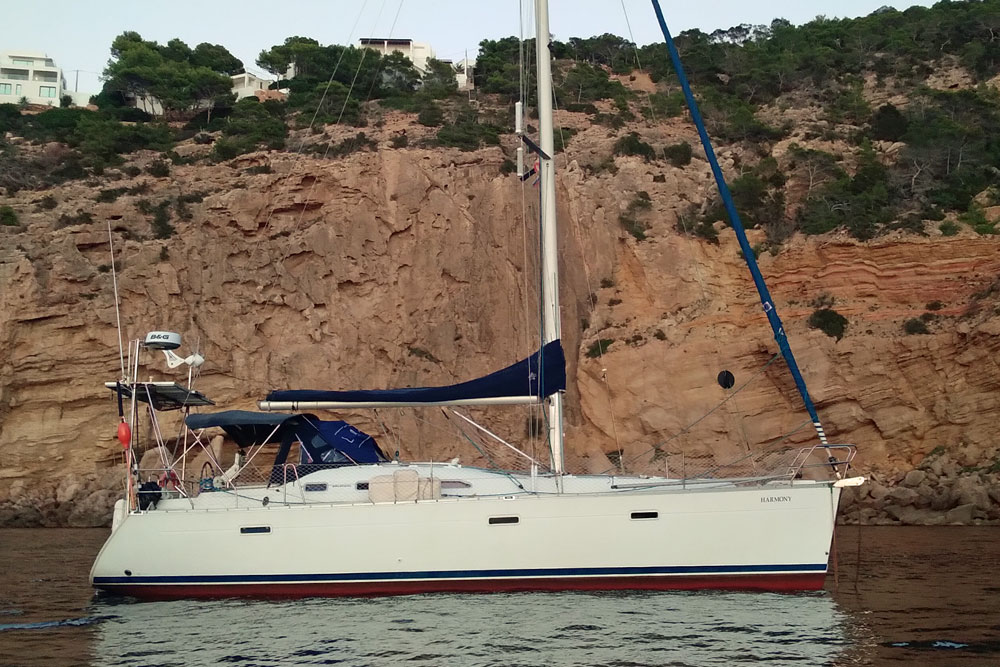

At anchor under the cliffs

Length overall: 11,96 m
Length on deck: 11.62 m
Waterline length: 10,69 m
Beam: 3,96 m
Draft: 1,91 m
Displacement: 7780 kg
Fuel: 138 l
Water: 500 l
Holding tank: 80 l
Mast height: 15,65 m
Naval architects: Jean Berret & Olivier Racoupeau

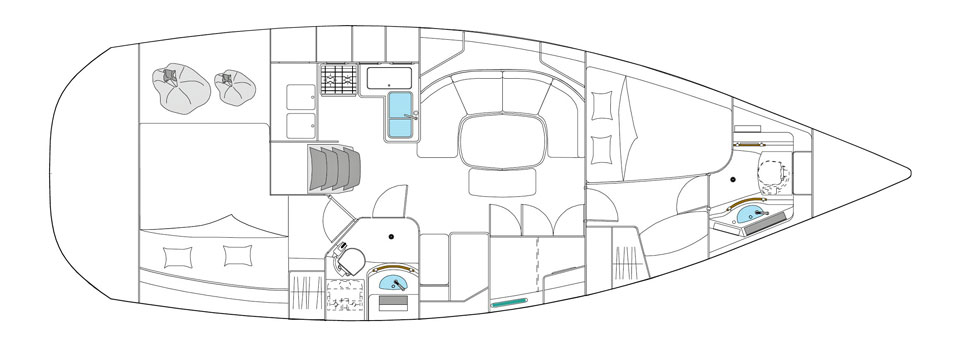

Accommodation Layout

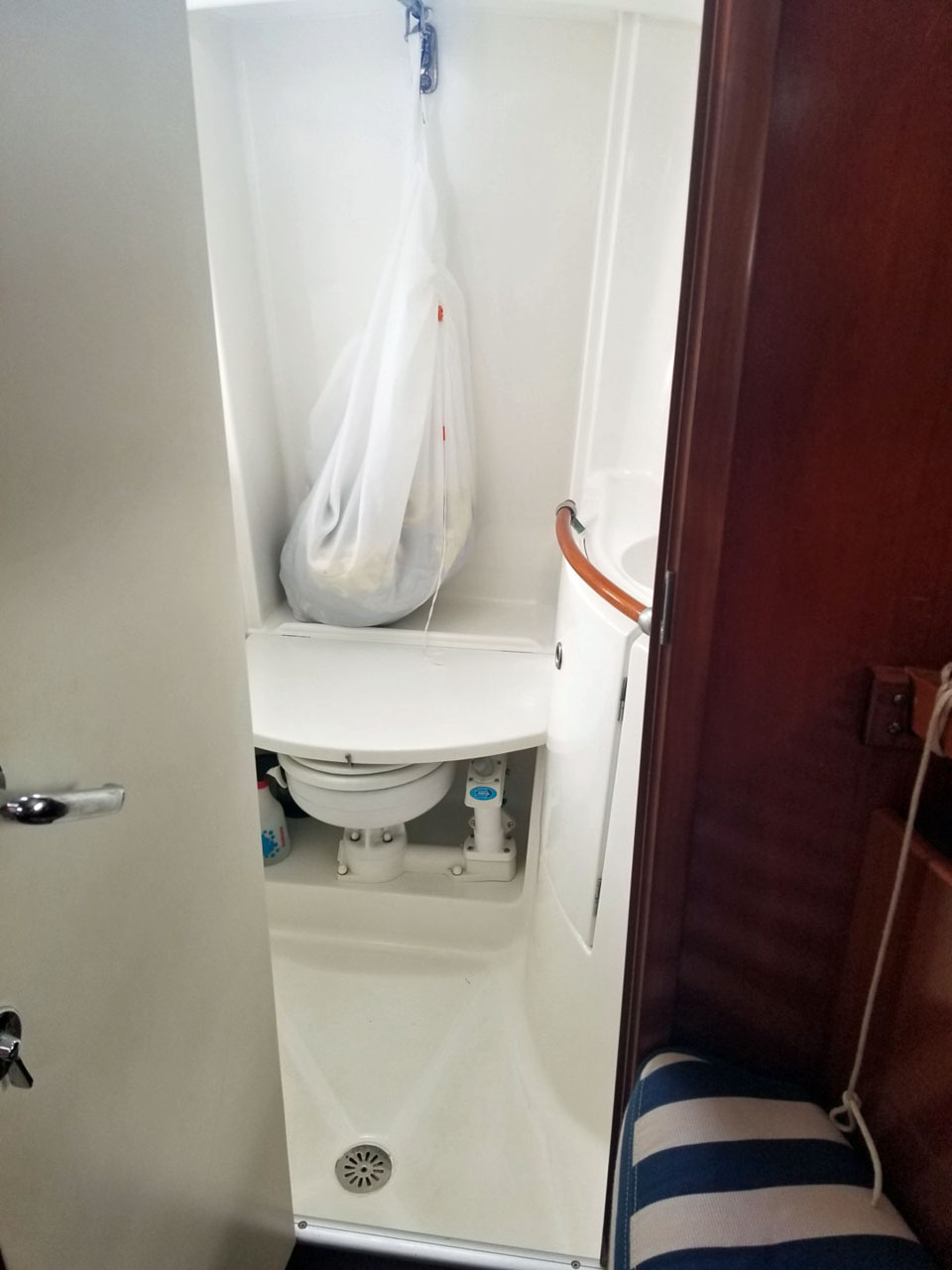

Forward Head

• The electric marine toilet has been removed, compartment is partly used as sail locker
• Washing machine Daewoo Compact for 3 kilos (2016)
• Washbasin with pressurized hot and cold water
• Shower drain pump
• Teak floor grates
• Cabinet, mirror, bathroom accessories
• Ventilation head on deck hatch
• 1 x 220V socket

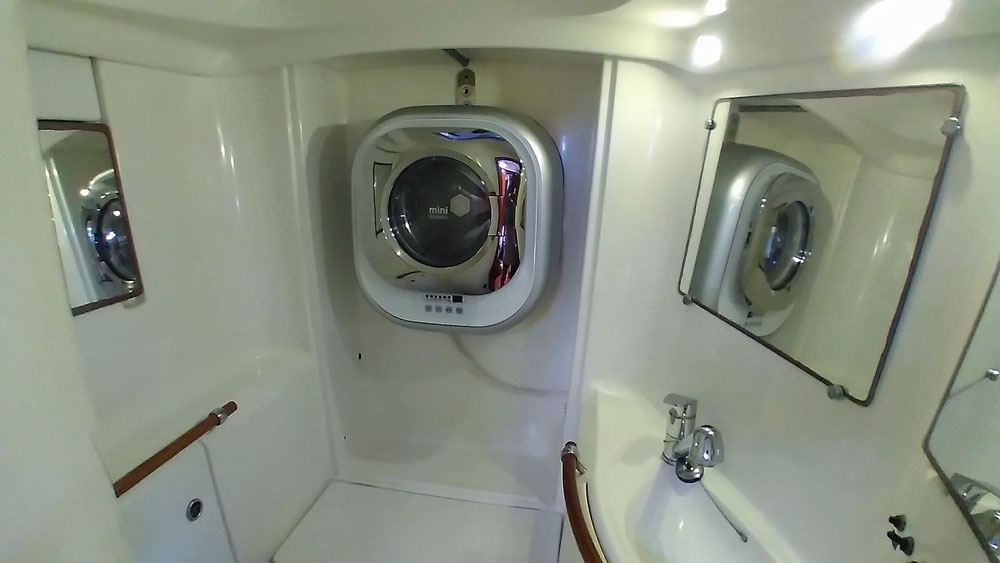

The Daewoo Compact washing machine where the forward head used to be

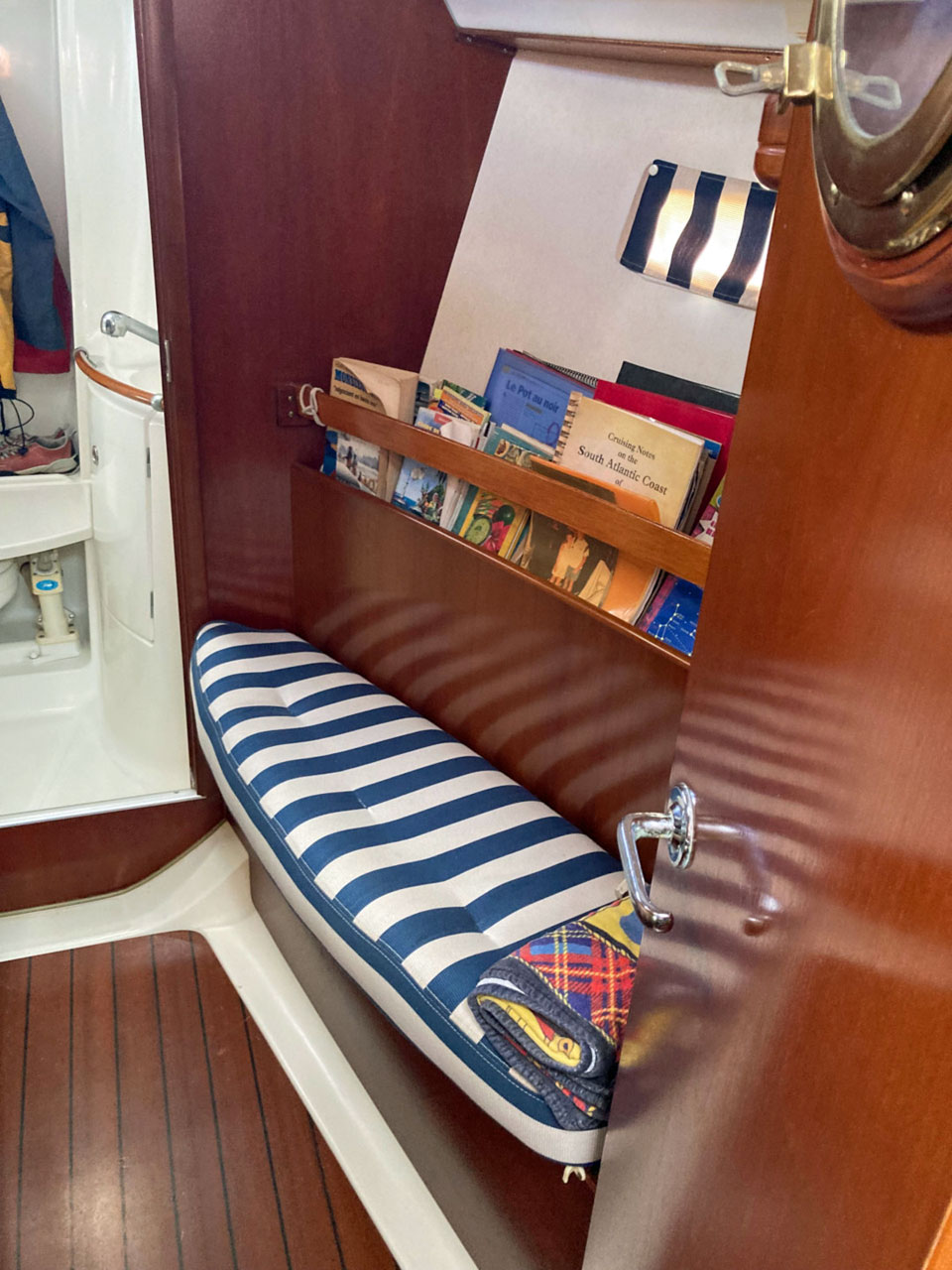

Forecabin

• Storage shelves along the hull sides with nets
• Book shelve on bulkhead
• 2 storage drawers under berth
• 1 hanging locker with shelves on starboard side
• 1 settee with locker underneath
• 2 x USB sockets
• 2 x 220V sockets

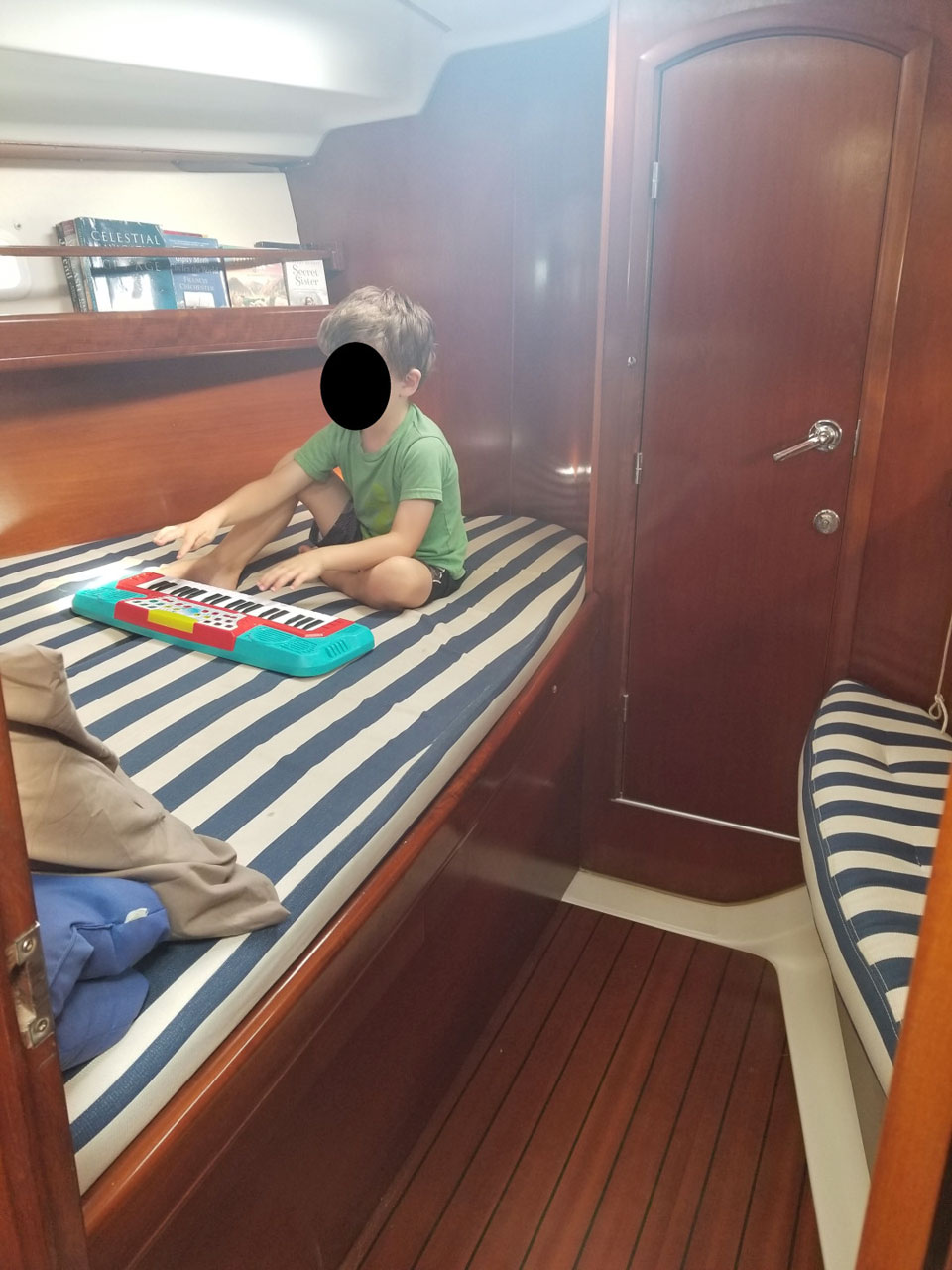

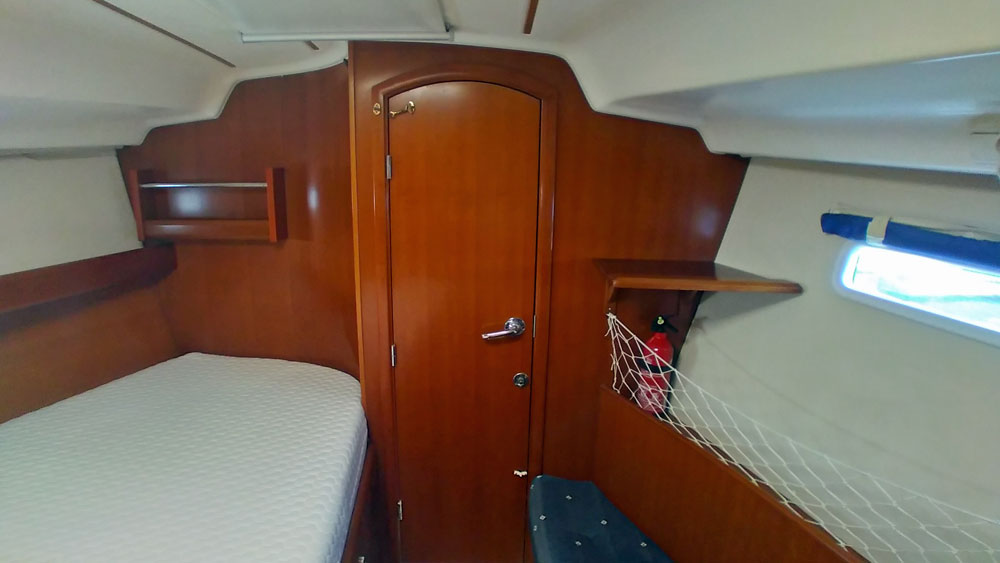

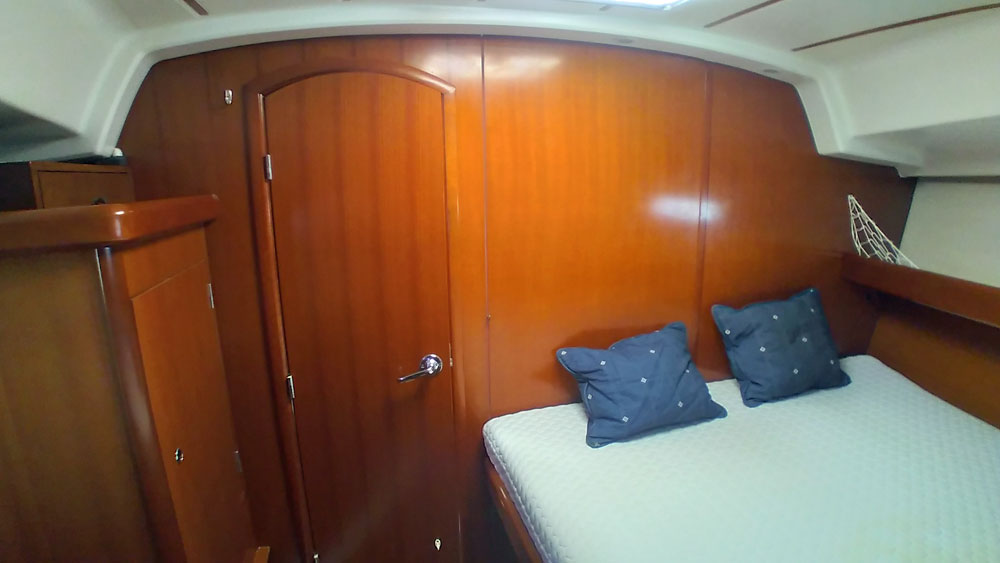

The forepeak berth

Saloon

• U-shaped settee with dinette
• Sofa cushions with synthetic leather (2015)
• Storage under settee
• Small central seat with storage
• Dinette table with aluminum legs
• Table convertible into double berth with 2 pillows
• 3 shelf lockers (slotted for ventilation)

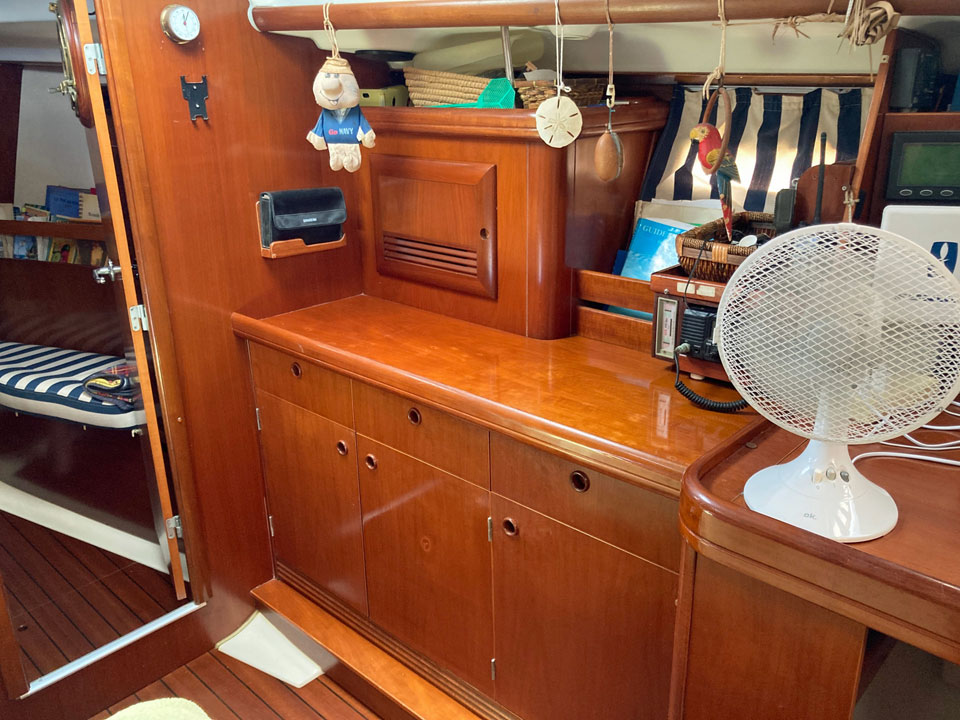

• Large storage cabinet and drawers on starboard
• Floor boards epoxied and varnished (2022)

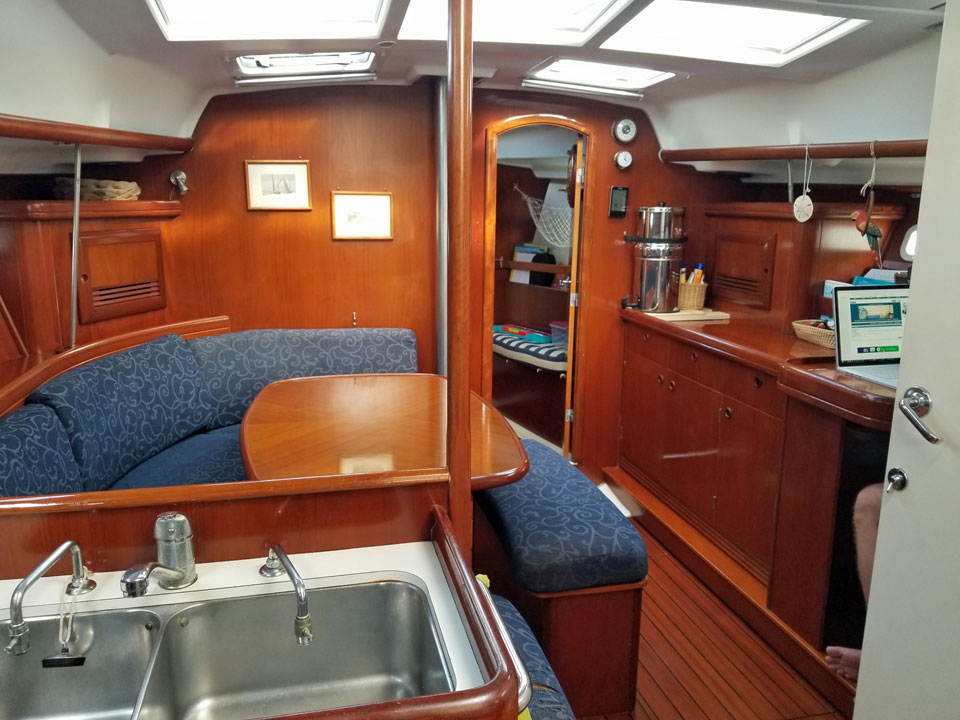

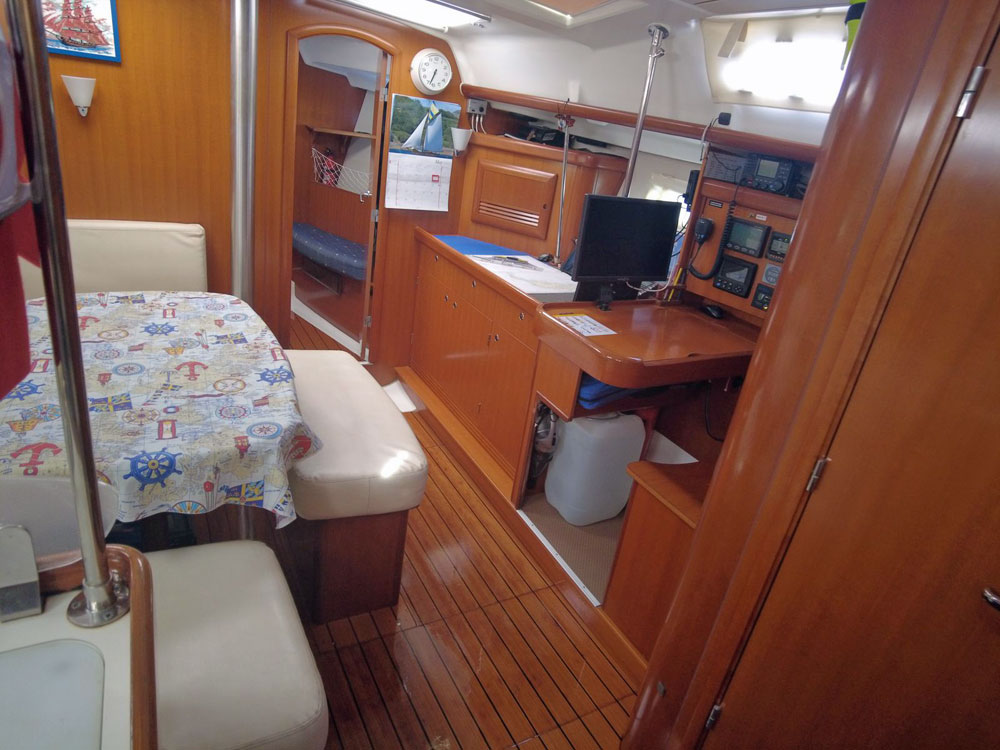

The saloon

Navigation Station

• Chart table with storage drawer
• Storage under table
• Storage under settee
• Fuse panels with 12 switches 12V
• Fuse panel with 4 switches 220V
• 12V, USB, 220V outlet
• Tank level indicator (not working properly)

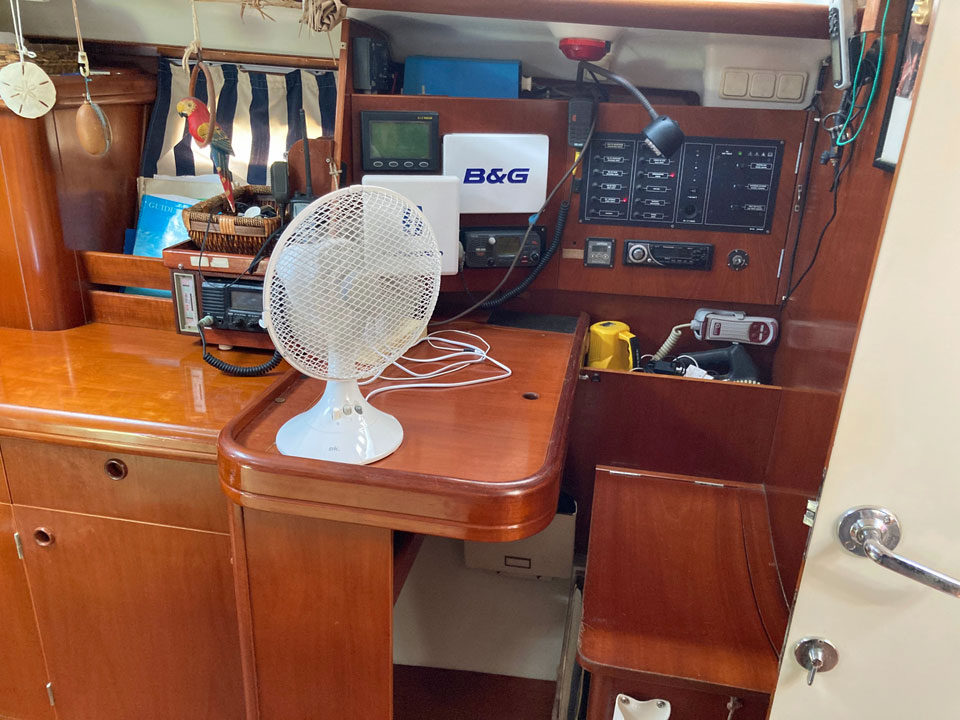

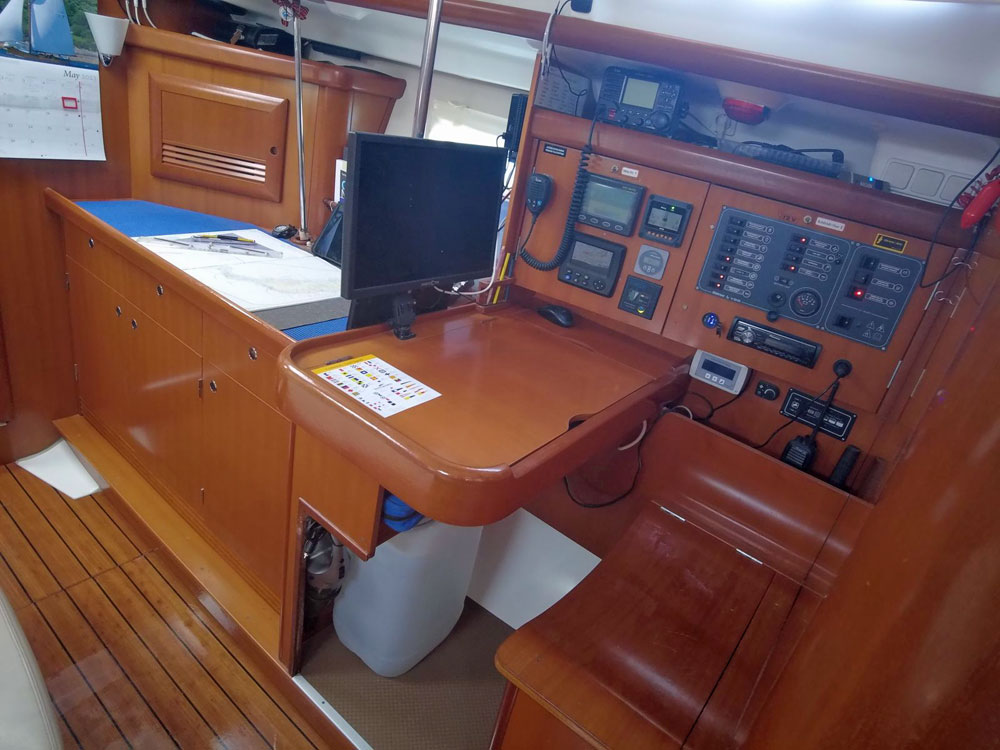

The well-equipped navigation station

Galley

• Laminated work surface over fridge and around sink
• 1 front opening fridge with internal freezer
• 1 top opening fridge
• Cabinets with slotted doors for ventilation purposes
• Custom shelves and hand rail
• 2 rectangular stainless steel sinks
• Pressurized hot and cold water mixer tap
• Saltwater 12V electric pump and tap,
• 3-way valve to drain the fridge by foot pump (need replace)
• Fresh water tap with coal filter 5 mkm
• 2 burner LPG stove / oven on gimbal
• 3 x 220V sockets

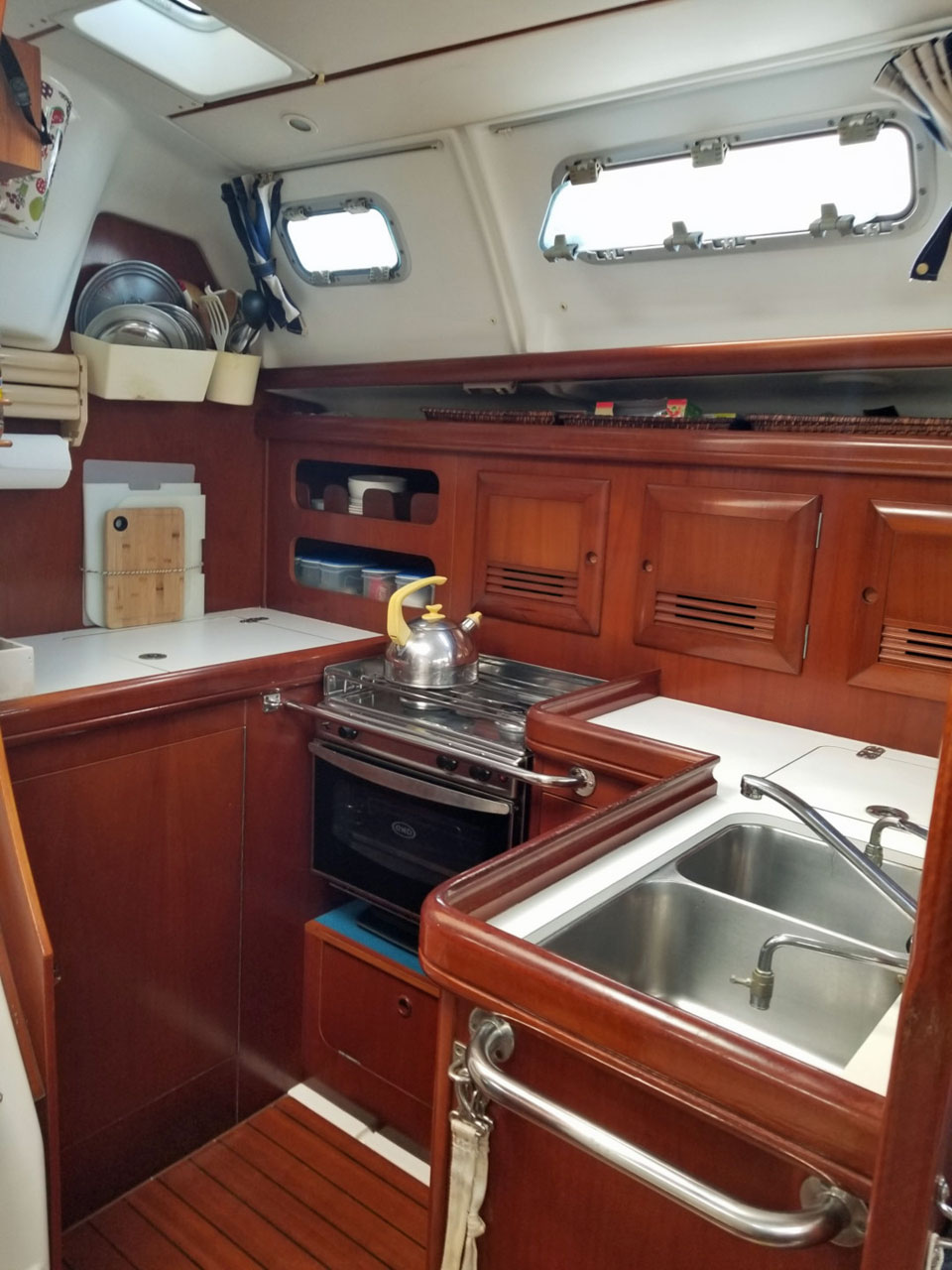

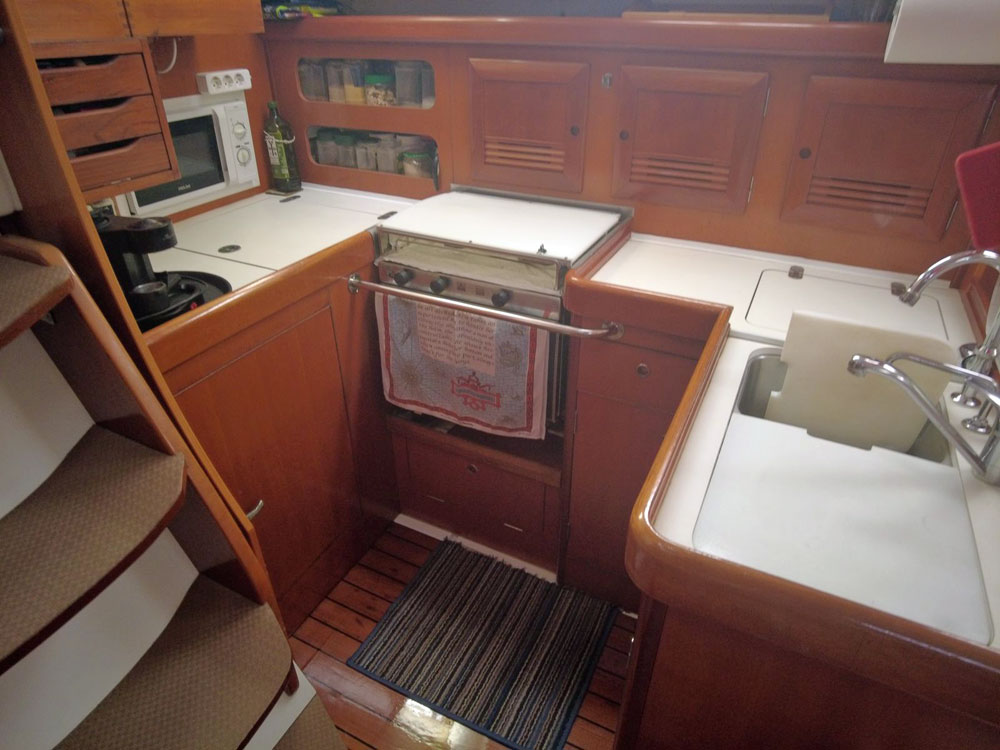

The galley at the foot of the companionway steps on the port side

Aft Head

• Manual marine toilet Jabsco
• Washbasin with pressurized hot and cold water
• Shower drain pump with filter
• Cabinet, mirror, bathroom accessories
• Ventilation head on deck hatch
• Teak floor grates

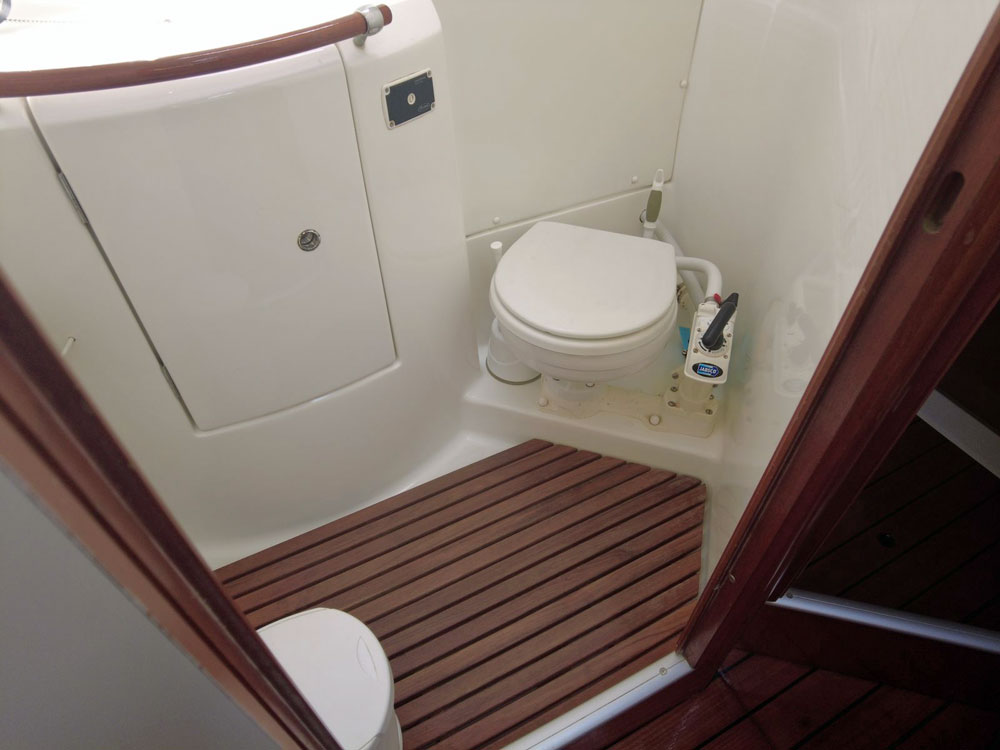

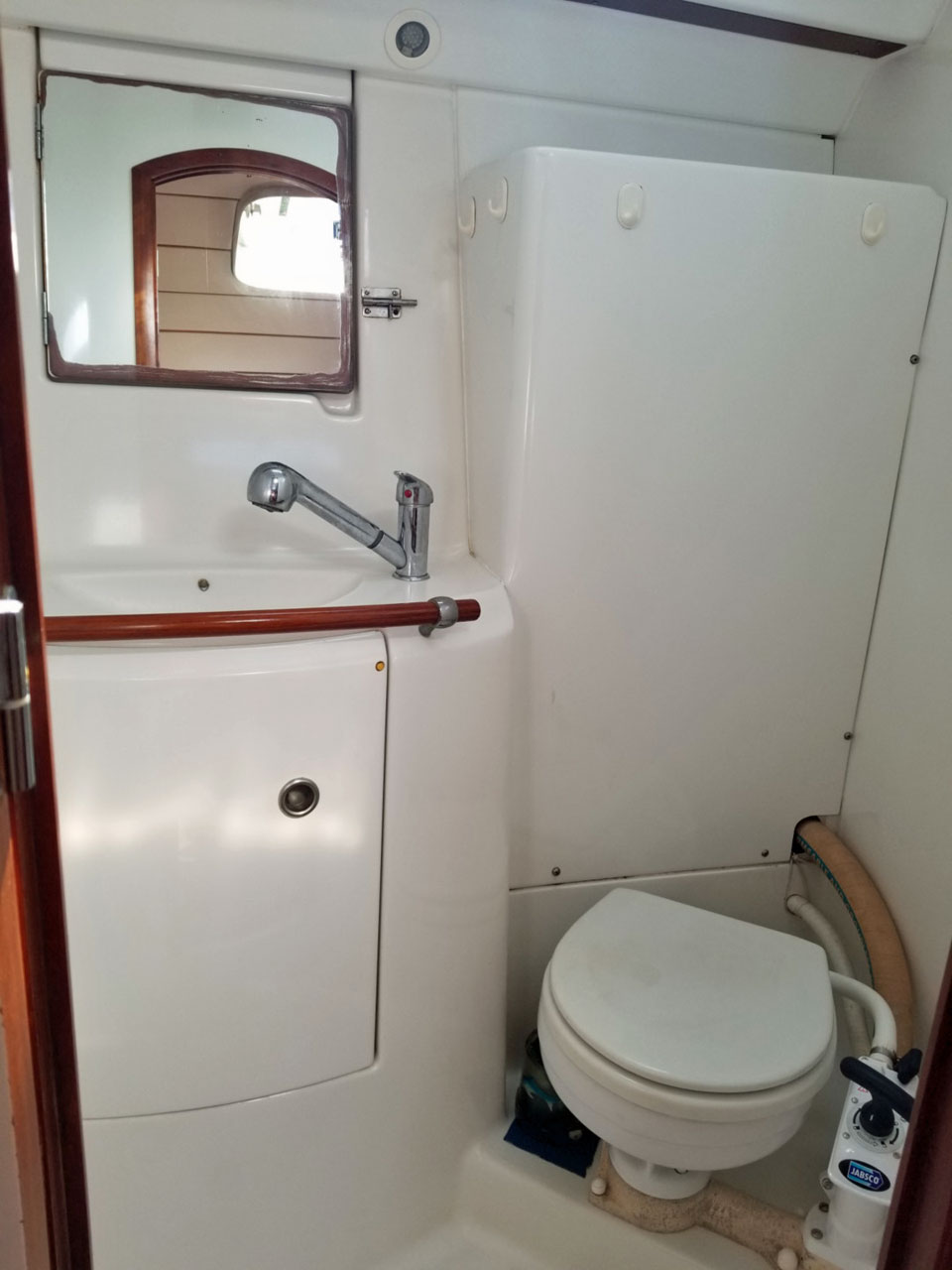

The aft head

Aft Cabin

• Double berth
• Hanging locker
• Storage shelves along berth
• Extra removable locker aft midship

The double berth in the aft cabin

Updates & Improvments

Deck Gear

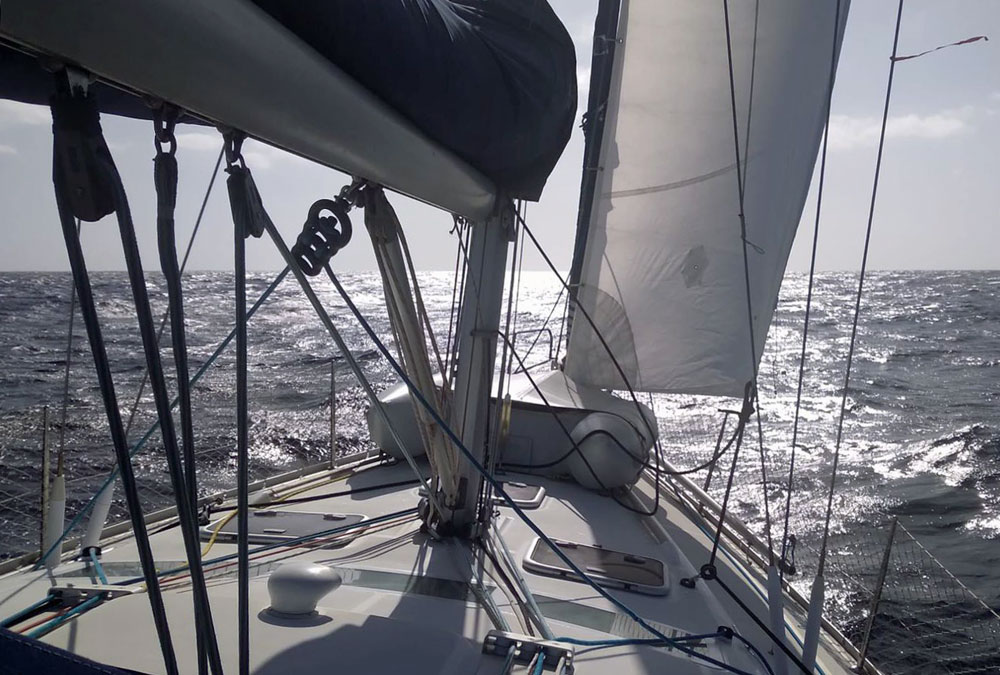

'Harmony' making good progress

Sail Handling

• 2 x electric winches Harken ST46 for genoa/staysail/genaker sheets
• 1 x electric winch Harken ST40 for reefs, main halyard, boom brake and boom vang (with remote control)
• 1 x manual winch Harken ST40 for topllift, boom brake, genaker and staysail halyards
• 8 x Spinlock XT camcleats for halyards, reefing lines, vang and main sheet
• 2 x camcleats for genaker tack
• 2 x camcleats for mainsail traveler
• 2 x camcleats for genoa sheet cars
• 1 x camcleat for genoa furler
• Mainsail traveler on coachroof adjustable from cockpit
• Electric windlass Lofrans 1000W (2019) with rope drum, chain + rope

Anchors:

• Rocna Vulcan 20kg (2020)
• Delta 16kg (2006)
• Aluminum Fortress-Guardian 10kg (2020)
• Anchor chain 10mm calibrated 90 m (50m new 2020 + 40m zinked 2020) + 10m rope
• Twin snubber line with s/steel chain hook
• 30m of rope for stern anchor

Canvas:

• Sprayhood (2022)
• Bimini (2016)
• Lazybag (2016)

Self-Steering:

• Custom “WindeR” windvane self steering with removable vane and Hydrovane steering blade, with optional tiller for emergency steering. Very simple and reliable construction, nothing to break.

Engine & Propulsion

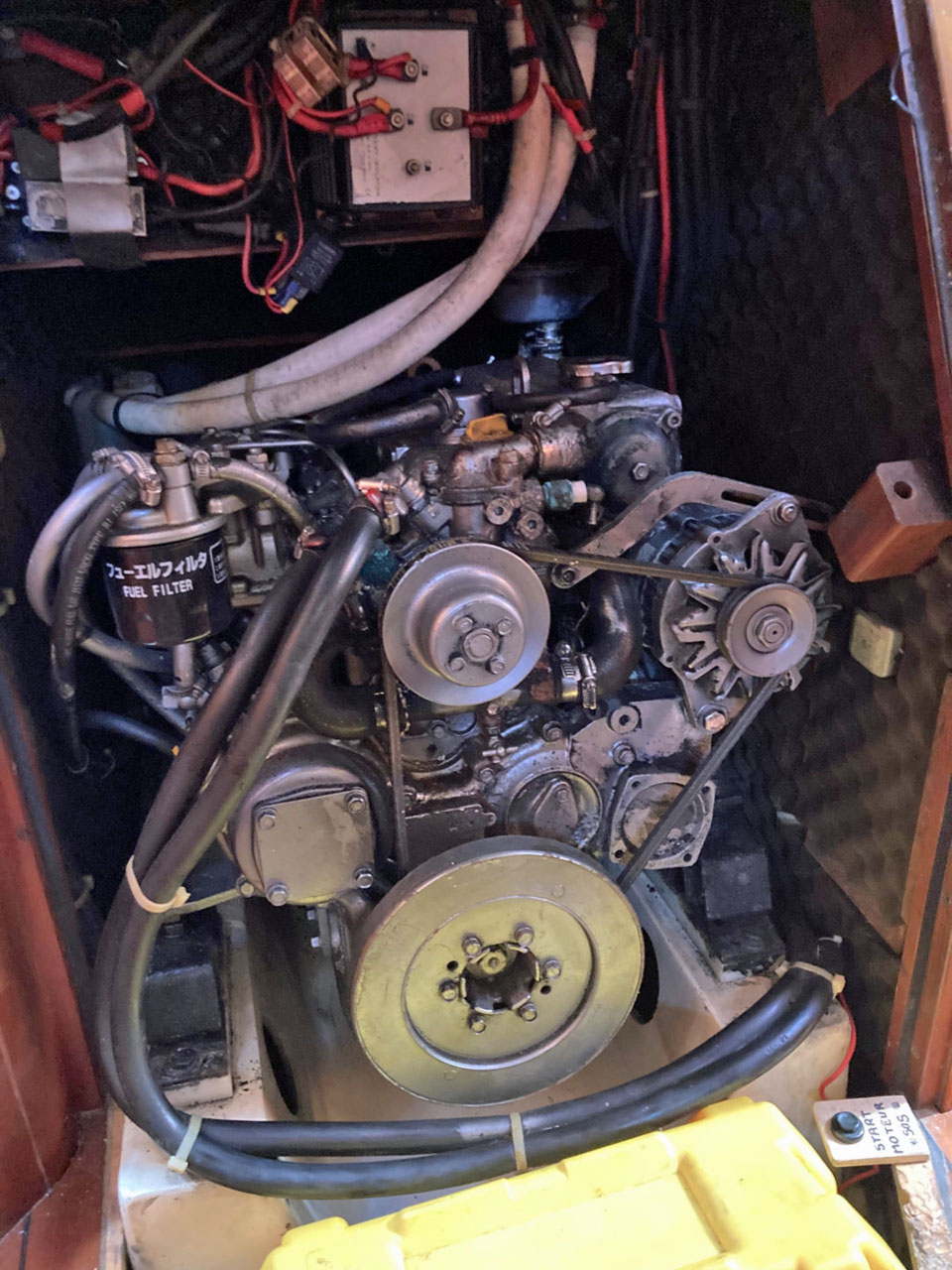

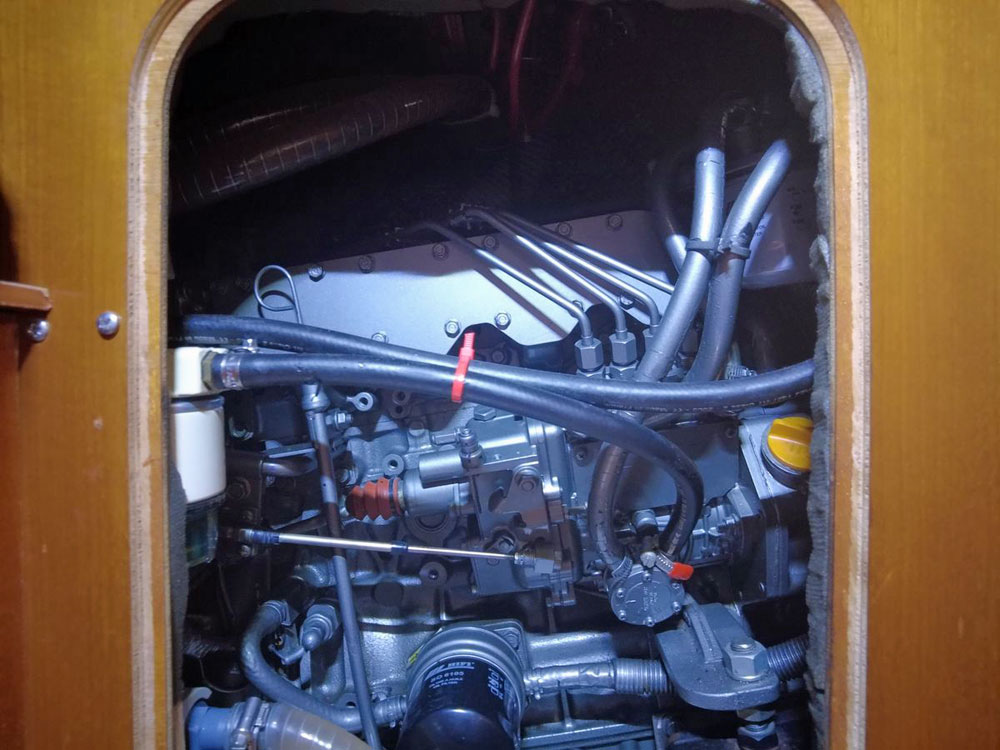

Yanmar 4JH4E 54 hp marine diesel engine

• Yanmar 4JH4E 54 hp (2006, approx 2300 hours)
• Diesel fuel tank 1 x 138 l
• Fuel filter system:
• universal coarse filter + standard filter + filter/water separator + engine filter (all 2022)

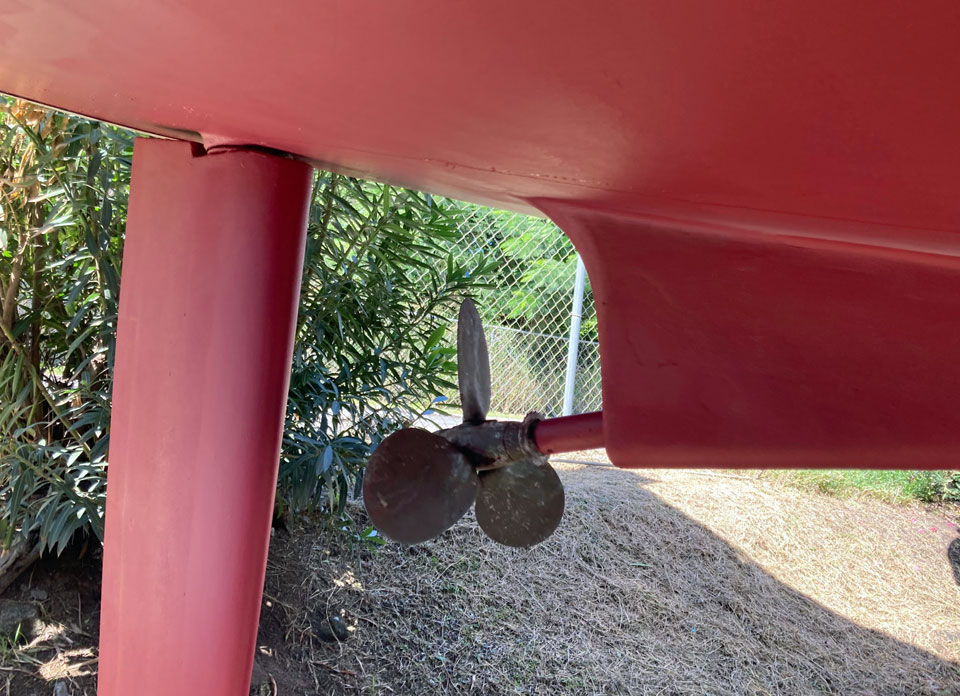

• KIWI-prop feathering propeller (2015, serviced 2022)
• Stainless steel shaft 30mm
• Shaft rubber bearing (2021),
• Rope cutter disc (2022)
• Zinc anode (2022)

Equipment

• Petrol generator ITC Power 2.2 kWt (2021), installed in cockpit locker with exhaust outside and intake air ventilator.
• Diesel air heater AUTOTERM AIR-4D (2021) with 4 outlets (forward toilet, cabin, saloon, aft cabin)
• Hot and cold pressured water system
• Engine and electric water heater 20L Quick Sigmar (2021)
• Electric water pump 12V system with expansion tank (2006)
• Electric deck wash pump 12V (2021) with hose connector at anchor box.
• 2 water tanks 500L total capacity, level gauge (not working)
• New faucet in the kitchen (2019)
• New faucets in the toilets (2020)
• Hot & cold cockpit shower

Electrics

• Service batteries 3 x 180 Ah (540 Ah) lead calcium, Freedom Marine (2021)
• Engine battery 1 x 100 Ah Tudor (2021)
• Solar panels 4 x 100W ViaSolar (2022)
• Solar panel 1 x 100W ViaSolar (2021)
• Solar panel regulator Epever Tracer 2210AN (4 x 100W solar panels) (2019)
• Solar panel regulator SunWare FOX300 (spare, disconnected) (2020)
• Wind generator Rutland 914i (2019)
• Regulator Rutland Marlec HRDi (wind generator + 1 solar panel 100W) (2019)
• Rutland Marlec remote display (2019) at nav.station
• Victron Phoenix Smart charger IP43 220V/50A 1+1 (2021)
• Battery monitor Victron BMV-700 500A (2015)
• Inverter 3000W DoPower (2015) + EDECOA remote control (2015) at navigation station
• Inverter 300W BESTEK (2020)
• Top shrouds grounded to the keel bolts
• Led ceiling lights in salon, galley and cabins
• Reading lights in cabins
• Led navigation lights (bow+stern)
• Led steaming and deck lights on mast (2020)
• Anchor light with cable and socket on deck (2020)
• 3 x 12V outlets (cockpit, nav.place)
• 8 x 220V outlets
• 8 x USB outlets (cockpit, nav.place, aft cabin, forward cabin)
• 2 x shore power cord (20+10 m)
• 2 x shore outlets with fuse breakers
• 2 x electric heater radiators
• 1 x electric towel dryer/heater

Electronics & Navigation (External)

• Radar scanner B&G HALO-24 (2020)
• Wind instrument ST60 (2006)
• Tridata instrument Raymarine ST60 (2006)
• Autopilot instrument Raymarine ST6001 (2006)
• Autopilot computer ST6001 Plus (2006) under aft berth
• Autopilot hydraulic ram Lecomble & Schmidt 40 ST 16DEBP 12v
• Magnetic compass Raymarine in aft cabin locker
• Depth sounder transducer Raymarine (2006)
• Wind transducer Raymarine (2006) on mast top
• Speed transducer (2006) (dismounted, wheel replaced 2020)
• Compass Plastimo 135mm (2006)
• Cockpit microphone VHF ICOM Commander(2020)
• AIS antenna Matsutec (2015) on arch
• GPS antenna Raymarine (2006) port side aft
• Wi-fi antenna Alfa Tube-U(N) on arch
• TV antenna Glomex (2015) on mast top
• Maxview antenna splitter/amplifier
• VHF antenna Scout 6db/50om on arch (2020) + antenna on mast top via splitter
• Clipper NAVTEX omniderectional antenna H-Vektor
• Magnetic compass Plastimo Olympic 135 (2006)

Electronics & Navigation (Below Deck)

• VHF ICOM IC-M506 AIS + MIC Commander in cockpit (2020)
• Handhelds VHF radio Icom IC-M23 (2019) with charger
• Clipper Easy NAVTEX (2022) + active antenna (2022)
• AIS Transponder with GPS Navigator Matsutec HP-33A (2015)
• vYacht Wi-Fi multiplexer (NMEA+SeaTalk) (2020)
• Battery monitor Victron BMW-700 (2015)
• MiniPC T11 ACEPC 12V (Linux Mint + OpenCPN) + keyboard + mouse + Radar ethernet
• 4G antenna Alfa Tube-U(4G) + Alfa W-Fi router (2020)
• Wi-Fi amplifier antenna Alfa-Tube on aft arch with cable to nav.place
• LED monitor UNISPECTRA 18” 12V connected to MiniPC via HDMI cable
• Control panel of inverter DoPower
• Remote display MT-50 of solar regulator Epever (solar 400W)
• Remote display Rutland (wind+solar 100W)
• Pioneer radio MVH-X370BT (USB+iPhone+iPod+Bluetooth) + 4 speakers
• Weather station Bresser Tendence WSX with external bluetooth sensor (2021)
• SEIKO marine quartz wall clock

Rigging

• Anodized aluminum performance mast Z-Spar (2006)
• Standing rigging intermediate shrouds, lower shrouds, stay and back stay (2006, revision 2020)
• Anodized aluminum boom Z-Spar with single line reefing system (2006)
• Genoa furler Facnor (2006) with furling line (2020)
• Boom vang adjustable from cockpit (2006)
• Boom break/preventer Wichard (2015)
• Spinnaker boom for genoa downwind sailing (2010)
• Retractable bowsprit for cruising gennaker and light genoa (2016)
• Removable Dyneema stay for storm jib and staysail (2016)
• Fitting on mast for securing the removable stay
• Mainsheet traveler with car on roof, adjustable from the cockpit
• Rings for genoa furling line (2022)
• Rings for staysail sheets (2022)
• Genoa sail sheets (2022)
• Staysail/storm jib sheets (2022)
• Gennaker sheets (2015)
• Gennaker tack line (2015)
• Mainsail halyard (2020)
• Genoa halyard (2015)
• Gennaker halyard (2015)
• Staysail halyard (2015)
• 2 bags for ropes in cockpit

Sails

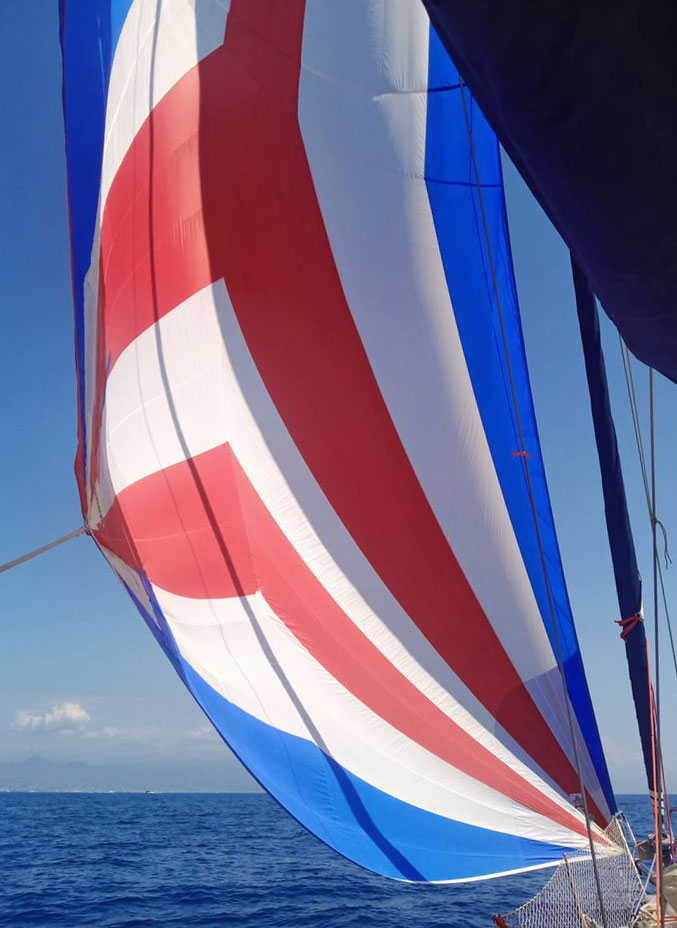

The gennaker

• Mainsail with full battens and 2 reefs (2015 approx)
• Genoa 130% (2022 Atica Sails)
• Light genoa 140% (2010 approx Elvstrom) with furling drum for bowsprit
• Storm jib on hanks (about new)
• Staysail solent 105 % on soft hanks (2021)
• Gennaker (2006 approx, repaired, in working condition) with sock, for bowsprit
• Genoa (2006 Elvstrom, spare, in working condition)

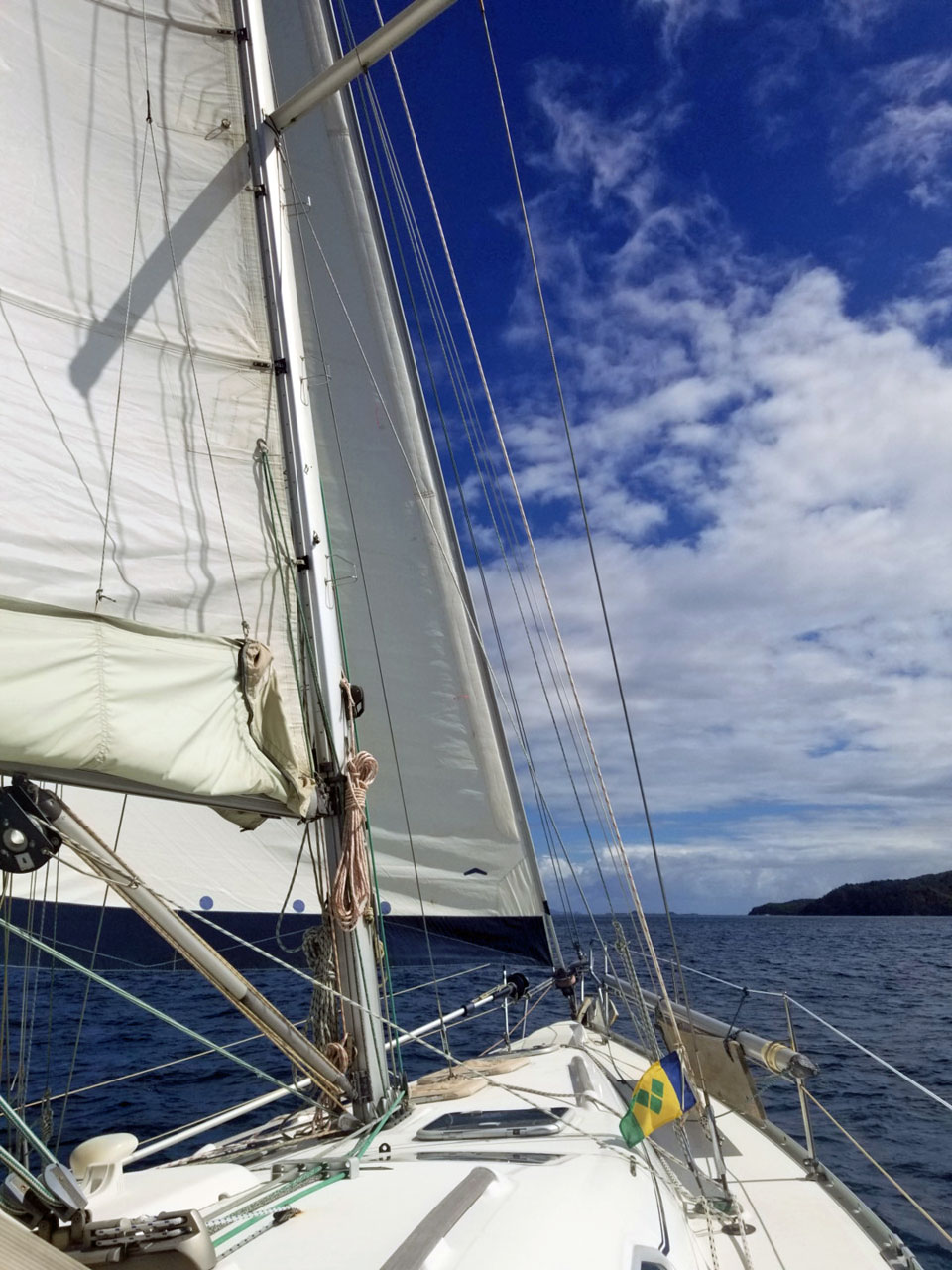

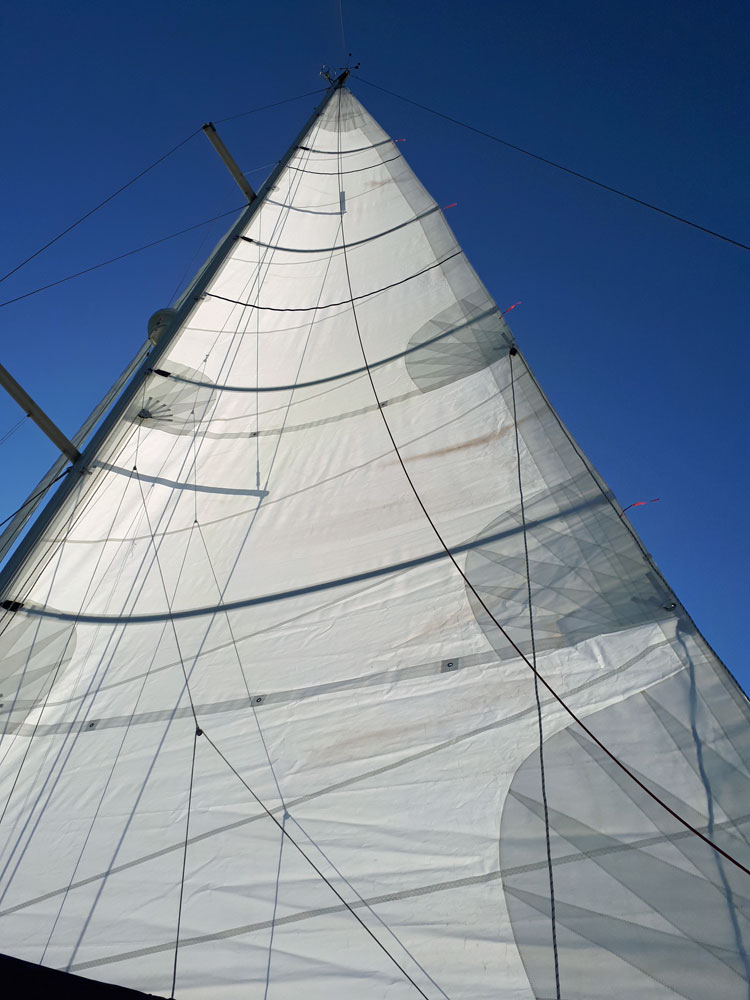

The fully battened mainsail has two reefing points

Comfort & Galley

• ENO 2 burner gas cooker with oven
• Refrigerator 1: front loaded, IDEL Wbasto Compact Classic BD-35 + thermostat Ithoterm (2010)
• Refrigerator 2: top loaded, Frigoboat 35F
• Both refrigerator compressors are located in portside big cockpit locker in separated compartment
• Wall washing machine Daewoo-Mini 6 kg 800 W, 220V (from inverter, petrol generator or shore power) (2016)
• Microwave oven Proline 1000 W (from petrol generator or shore power) (2015)
• Gas BBQ Magma (2020)

Safety & Miscellaneous

• Manual bilge pump in cockpit (2006)
• Electric bilge pump with float switch (2006)
• Emergency manual portable double diaphragm pump on frame Whale GUSHER 30 (117 l/min)
• with hoses 40mm (5 +3 m), location in portside cockpit locker.
• Life raft Plastimo Ocean 6 persons (March 2020, need revision)
• Jacklines set on deck sides (2016)
• Life ring with holder and floating rope on drum
• 4 x Inflatable life jacket
• 2 x life vest
• Dan-buoy with flag, rope and holder (2022)
• 3 x extinguishers (2019)
• Fire blanket
• Distress flare kit SOLAS approved >50 miles ocean
• 8 fenders
• 6 mooring ropes
• 2 moorings with 10mm springs
• Outboard motor Suzuki 2.5 hp (2019)
• Dinghy Lalizas Hercules 230 (2019)
