Sailing Knots, Hitches & Bends

Their Uses & How to Tie Them

Most of the sailing knots we use today were developed by sailors serving aboard the square riggers of the 18th and 19th centuries. The running rigging aboard our sailboats today are much less complex than those of yesteryear of course, but we still need reliable, easily tied knots for such things as:

joining ropes and lines;
attaching sheets to sails;
attaching control lines to shackles and other hardware items;
attaching flags to their halyards;
mooring our boats alongside;
tying lines to fenders and fender lines to guardwires and rails;
creating stopper knots to prevent errant lines flying free;
attaching rope warp to anchor chain;
forming rope loops;
stopping rope ends from fraying.

It's vital that every sailor is able to tie the correct knot for the purpose for which it was intended, as the safety of the vessel and its crew may well depend on it.

And it's important to remember that all knots reduce the strength of the line in which they are tied, some more so than others - but a reduction of 50% or so in polyester braids (and considerably more in dyneema) is a reasonable approximation.

Whilst there are many different sailing knots to choose from - far too many to remember how to tie all of them - the most useful and commonly used ones you'll find here.

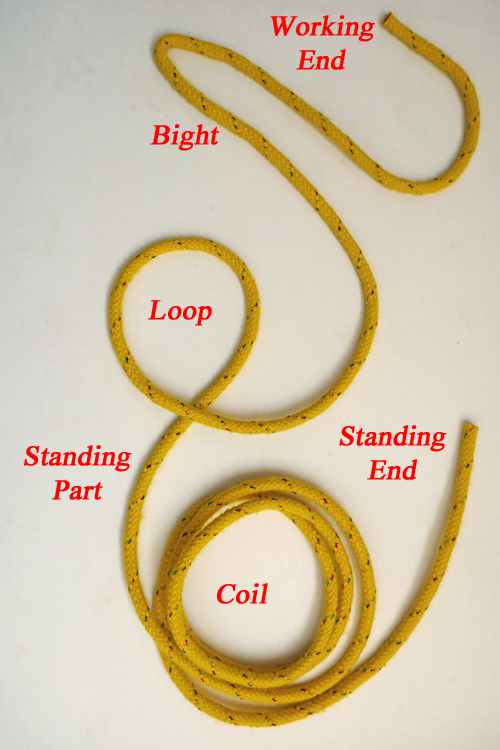

But before we get into the knots, we need to familiarise ourselves as to the various parts of the rope that we'll be referring to later...

Working End: The end of the rope that is actively involved in the knot tying process.

Bight: A section of the rope that is folded back on itself without crossing over.

Loop: A bight with two adjacent parts of the rope crossed over.

Standing Part: The part of the rope downstream of the working end.

Standing End: The other end of the rope.

Sailing Knots, Bends & Hitches:

Note: Not all sailing knots are knots; some are bends and others are hitches!

1 - Knots

This is a term applied particularly to stopper knots (aka 'knobs') and loops, and anything else which isn't a hitch or a bend.

Bowline

The sailors favourite method of creating a loop in a rope.

How to tie the Bowline...

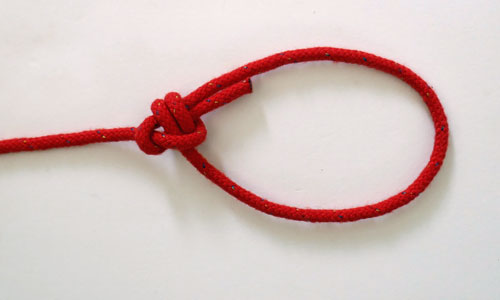

Double Bowline

A stronger version of the Bowline favoured by climbers.

How to tie the Double Bowline...

Bowline on a Bight

Used in recovering a Man Overboard.

How to tie the Bowline on a Bight...

Figure of 8 Knot

A commonly used Stopper Knot.

How to tie the Figure of 8 Knot...

Double Overhand Knot

Another effective Stopper Knot.

How to tie the Double Overhand Knot...

2 - Bends

Bends are used to tie two rope ends together - either two ends of the same rope or two ends of different ropes. Note that some bends are traditionally call knots (ie the reef knot and the fisherman's knot) although they are in fact bends.

Reef Knot

A popular bend (not a knot) for joining lines of the same diameter.

How to tie the Reef Knot...

Sheet Bend

The most frequently used bend for joining lines of different diameter.

How to tie the Sheet Bend...

Double Sheet Bend

A stronger version of the Sheet Bend,

How to tie the Double Sheet Bend...

Fisherman's Knot

A simple and secure way of joining two lines with two overhand knots tied back-to-back.

Double Fisherman's Knot

An even stronger version of the Fisherman's Knot.

How to tie the Double Fisherman's Knot...

3 - Hitches

Hitches are used to attach a rope to another object, such as a ring, a spar or a stanchion. A line or rope is said to be 'made fast' rather than 'hitched' because only the knot itself is called a hitch. Note that some hitches are traditionally called bends (eg the Anchor Bend) although, correctly speaking, they are hitches.

Clove Hitch

A popular method of making fast a line around a rail, a spar or another rope.

How to tie the Clove Hitch...

Rolling Hitch

A useful hitch that locks in one direction and slides in the other.

How to tie the Rolling Hitch...

Round Turn & Two Half-Hitches

A quick and secure way of making fast a mooring line to a bollard.

How to Tie the Round Turn & Two Half-Hitches...

Anchor Bend

Once put under load this strong and reliable hitch (not a bend) is almost impossible to undo.

How to tie the Anchor Bend...

Buntline Hitch

An alternative to the Anchor Bend.

How to tie the Buntline Hitch...

Half Hitch

The most unreliable of all hitches, but an important component in several other reliable knots, bends and hitches - the round bend and two half-hitches for example.
