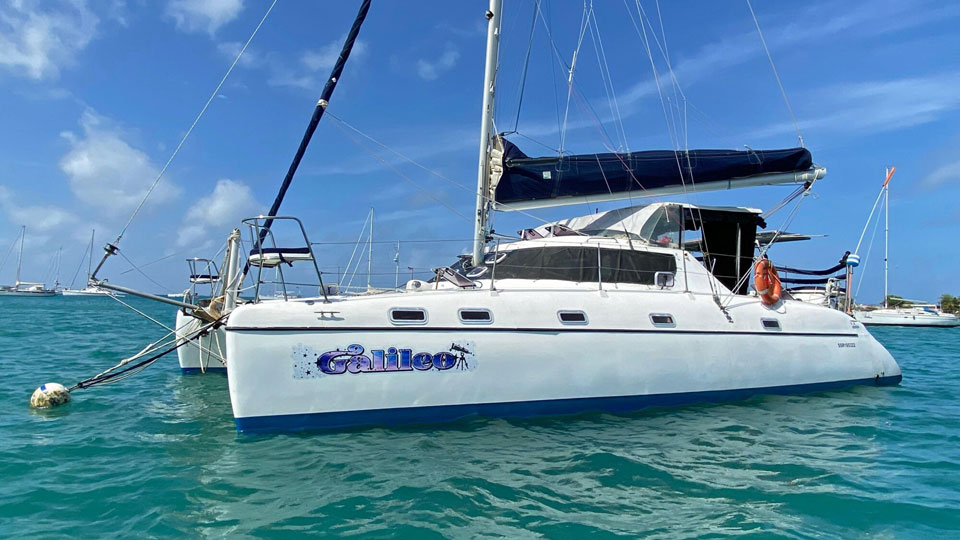

'Galileo', a 2007 Jaguar 36 Catamaran for Sale
The Jaguar 36 catamaran, designed by navel architect Jeff Schionning and built in South Africa, offers extraordinary accommodation for 36ft cat.
Built in South Africa by 'Cats for Africa (PTY) Ltd', 'Galileo' has a GRP hull and superstructure with balsa core. She was last anti-fouled in January 2023.
With her 21 ft beam, four queen sized cabins, one crew cabin, two heads and well proportioned saloon and galley, 'Galileo' rivals the living space of much larger yachts.
The spacious cockpit with double doors opening into the saloon is well protected with a full cockpit enclosure with both rain and shade sides, which were new in 2023.
The aft platform allows for the dinghy to be easily raised and lowered from the dinghy davits and is a great place to BBQ and relax with the two aft rail seats.
Two Vetus engines were new in 2021. Other recent improvements include complete re-wiring, new saloon windows in 2023, new Tohatso 9.8 outboard 2023, new AIS transceiver/responder 2023, new VHF with AIS 2024, and a new engine starter battery 2022.
ACCOMMODATIONS
This Jaguar 36 catamaran offers four double cabins, plus fifth crew cabin currently converted into storage.
There's 6'7" standing headroom and good ventilation throughout.

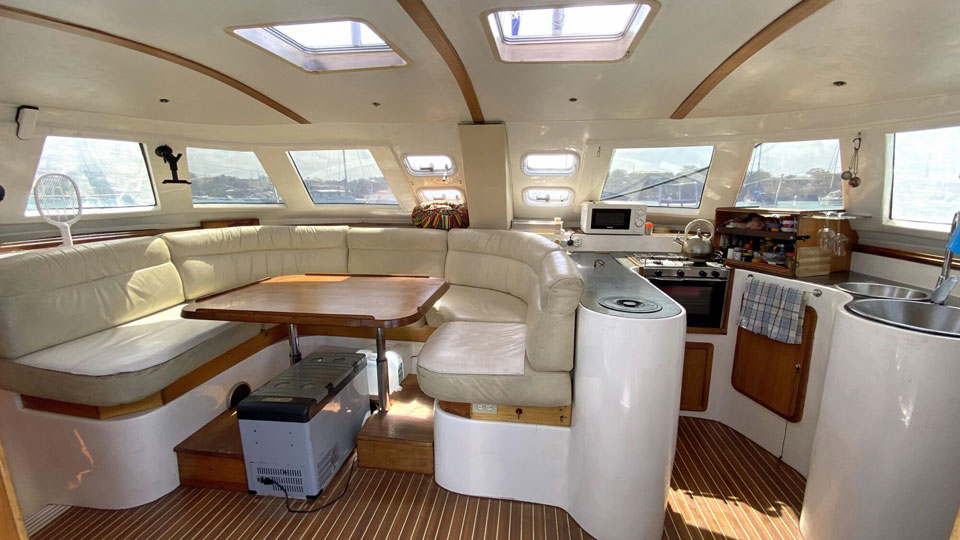

- Main saloon & galley on bridge-deck with panoramic views.
- Large table with wrap-around settee with large stowage lockers beneath.
- The galley lies to starboard with double stainless steel sinks, 2 burner hob and oven, large fridge and large freezer with separate 12v portable freezer.
- Electrical panel to starboard and nav/computer area to port.
Port hull: Aft cabin with double berth, hanging lockers and closets, fan, USB charging points and engine access. Top opening hatch, portlight & reading lights.
- Heads: Walkthrough heads with electric toilet and shower unit. Wash basin with hot & cold pressure water. Bathroom cabinet & mirror.
- Forward cabin with double berth with fan, USB charging point, lockers and top opening hatch. Access to crew cabin currently used for storage.
Starboard hull: Aft cabin with double berth with hanging lockers and closets, fan and engine access. Top opening hatch, portlight & reading lights.
- Walkthrough lined with cupboards filled with spares and tools.
- Forward cabin with double berth with fan, lockers and top opening hatch.
- Heads: Forward head with manual Jabsco toilet, washbasin with hot and cold water, shower, cabinet and mirror.
MECHANICAL SYSTEMS
Two Vetus M3-29 diesel engines. 29hp New 2021. Well maintained and in good running order, last serviced April 2024. Volvo 130S sail drive units with 3-bladed fixed props New 2023. Ultraflex haudraulic steering pump replaced 2024
Yanmar generator, hours unknown.
ELECTRICAL SYSTEMS
- House batteries total 1240Ah
- 2 x Start battery lead acid New 2022
- 5 x Solar panels total 700W
- Air-X 40Amp wind generator
- 30Amp Battery charger
- 100Amp Victron battery charger
- 5000W Inverter
- 1200W inverter
- Victron Bluetooth smart shunt battery monitor
- Victron MPPT 100/50 SmartSolar charge controller
- Victron MMPT100/60 SmartSolar charge controller
- 2 x Victron Orion-Tr Smart 12/12-30 DC/DC charger
- DT-1000VA step up + step down transformer
- Honda 2000 generator
- Double Bluetooth chargers in 3 cabins
- 13 USB charging system in saloon
- Bluetooth sound system
SAILS & SPARS
- Decked stepped fractional sloop rigged aluminium mast and boom. Stainless steel rigging age unknown, running rigging age unknown. Slab reefing mainsail with stack pack. Furling genoa, furling gennaker. 2 x Harken 40, 2 speed self tailing winches.
- Mainsail Ulmann 7 years old Fair condition
- Furling genoa Ulmann 7 years old Fair condition
- Gennaker blue & white 7 years old Barely used.
DECK EQUIPMENT
- 25kg Rocna anchor
- 25kg CQR
- 20kg CQR
- 65m 8mm chain
- 100m Anchor rode
- Maxwell 1500W windlass
- Davits
- Solid bimini
- Full enclosure shade and rainproof -Blue Ulmann sails New 2023
- Sail cover Blue
- Cockpit table
- Blue cockpit cushions
- BBQ
- Swim ladders
- Dock lines and fenders.
NAVIGATION EQUIPMENT
- Compass
- Raymarine Chartplotter eSseries (with Navionic charts purchased in 2023)
- Raymarine Radar
- Raymarine GPS
- Raymarine autopilot New 2024
- Raymarine wind and depth
- Standard Horizon VHF with AIS New 2024
- Yacht Nucleus AIT 500 Class B + AIS transponder New 2023
- AIS MOB
- LED navigation lights
- Clock and Barometer
SAFETY EQUIPMENT
- 2 x Arimar 6 person life raft last serviced 2021
- 8 x Type 2 life vest
- Danbuoy
- 3 x Electric bilge pump
- 2 x Manual bilge pump
- Fire blanket
- Fire extinguishers out of date/need servicing
- Gas Alarm
- Epirb
- First aid kit
ADDITIONAL EQUIPMENT
- 10ft Dinghy
- 9.8 Tohatsu 2 stroke outboard engine New 2023
- Spare 4hp Yamaha outboard
- Iridium Go needs package
- Water maker 100l/hr
- Sewing machine
- Snorkels, masks & fins
- Vacuum cleaner
- Lots of spares and some tools
- Cutlery & crockery New 2023
- Bed linens New 2023
Asking Price & Contacting the Owner's Representative
'Galileo', a Jaguar 36 Catamaran
|
The asking price for 'Galileo' is $150,000. She's currently located in Grenada, West Indies, where Rosie Burr of Clarke & Carter Caribbean will be happy to arrange a visit for you or provide any further information you may require.
|

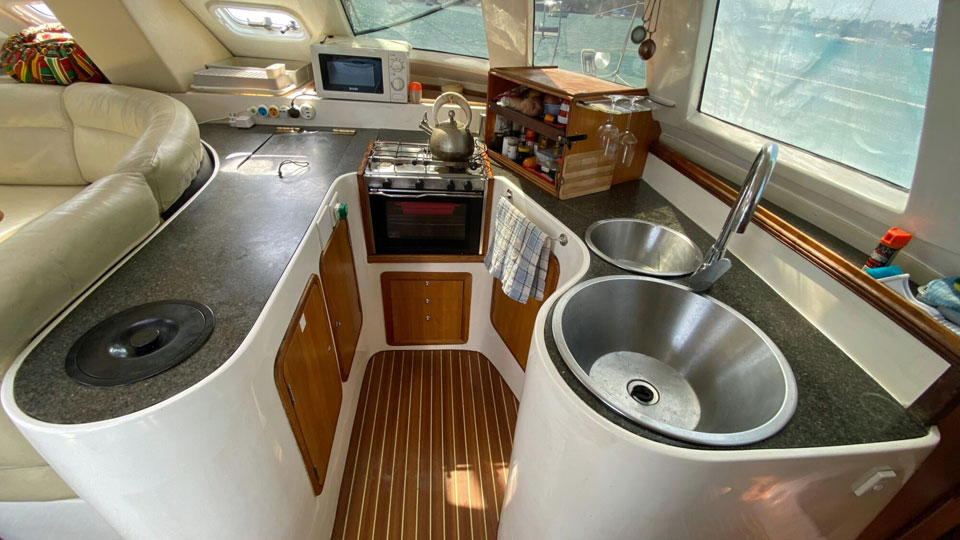

The galley

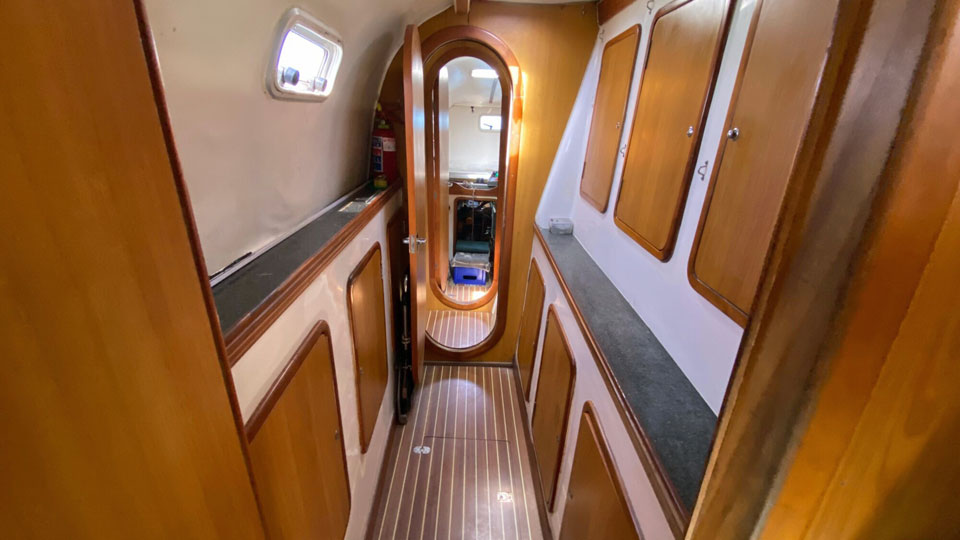

The hull passage with stowage either side

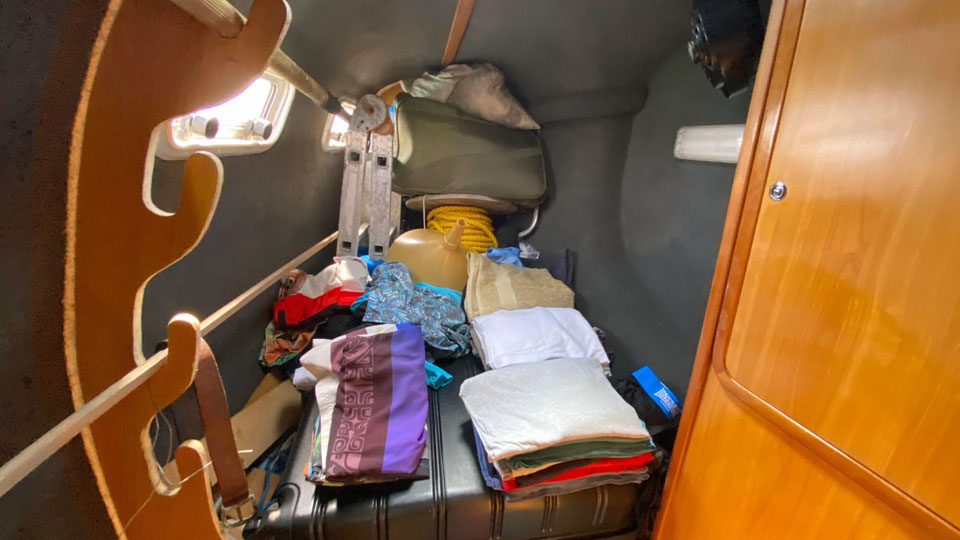

More stowage in the crews berth

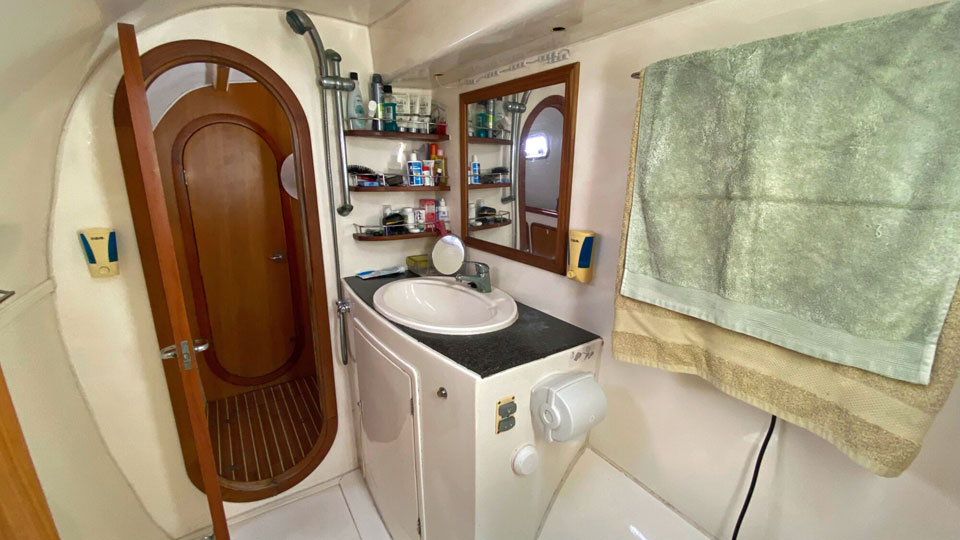

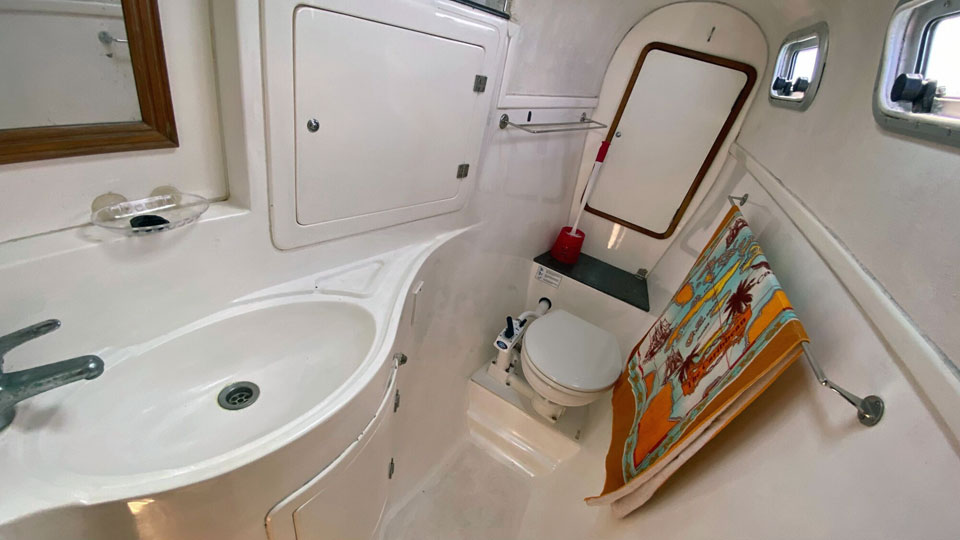

One of the two heads

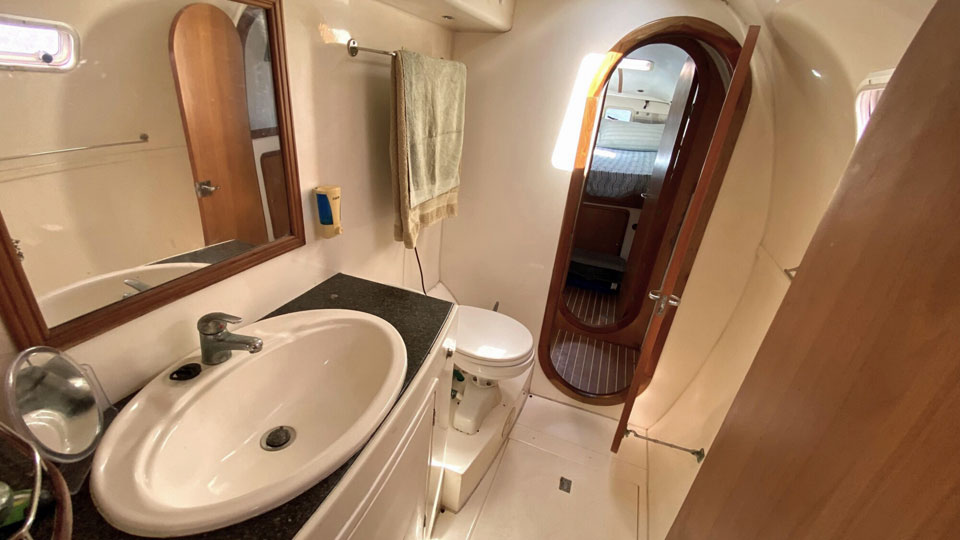

The second head is...
...accessible from either end

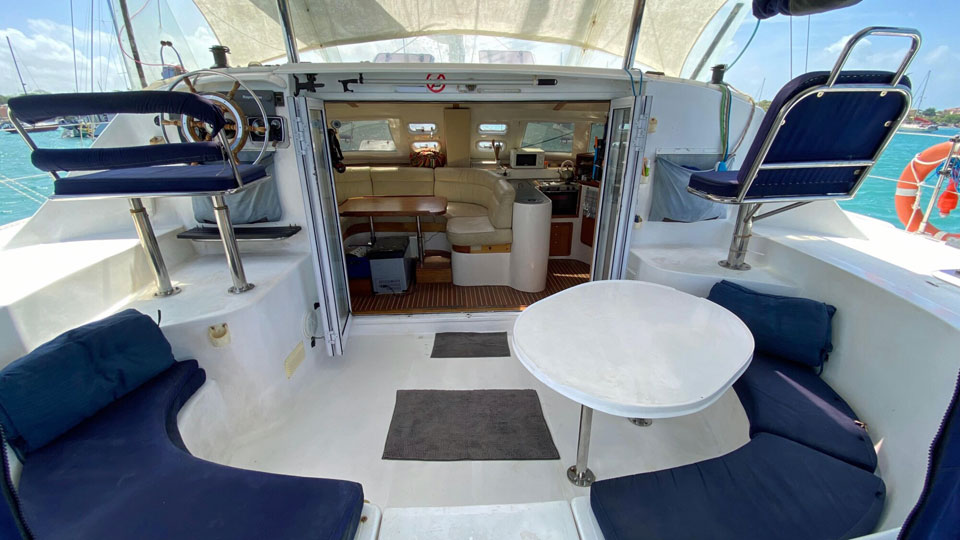

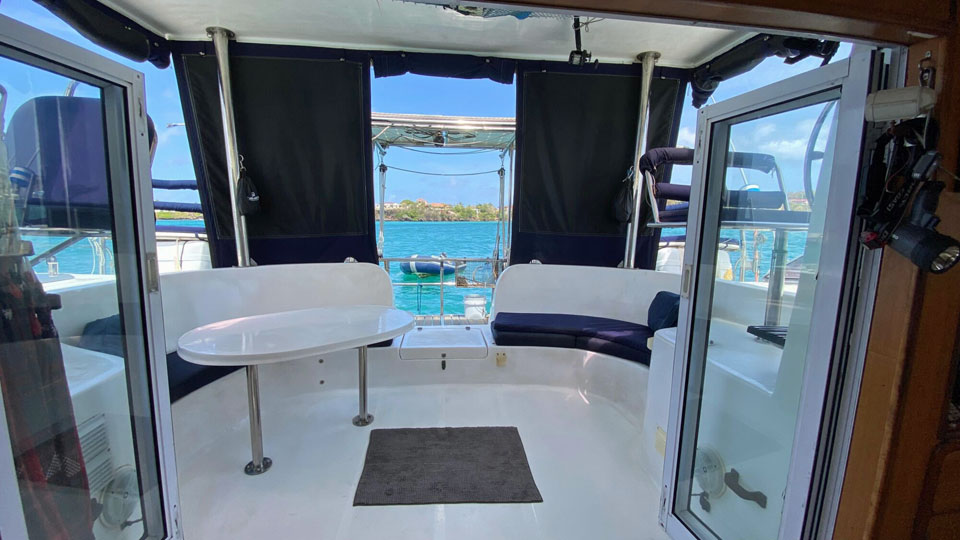

The forward end of the cockpit

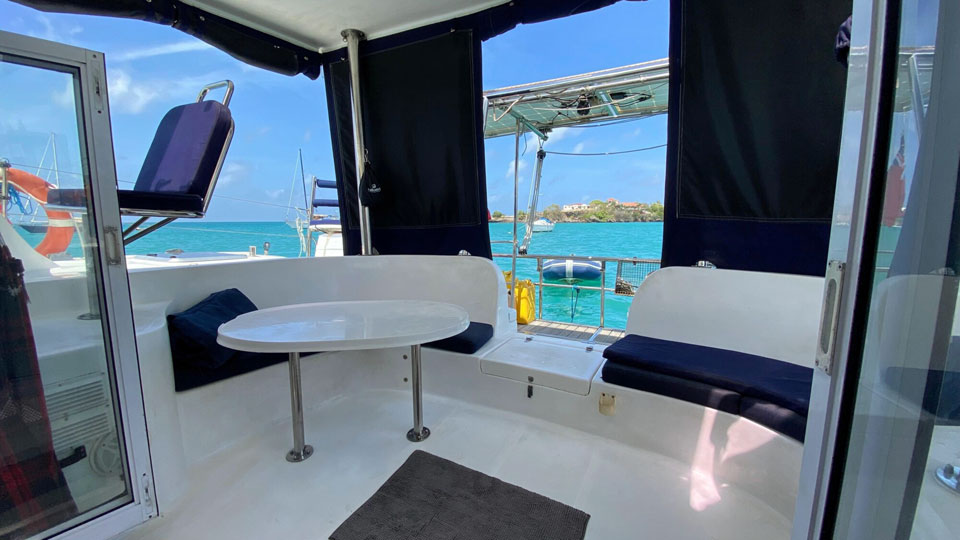

The other end

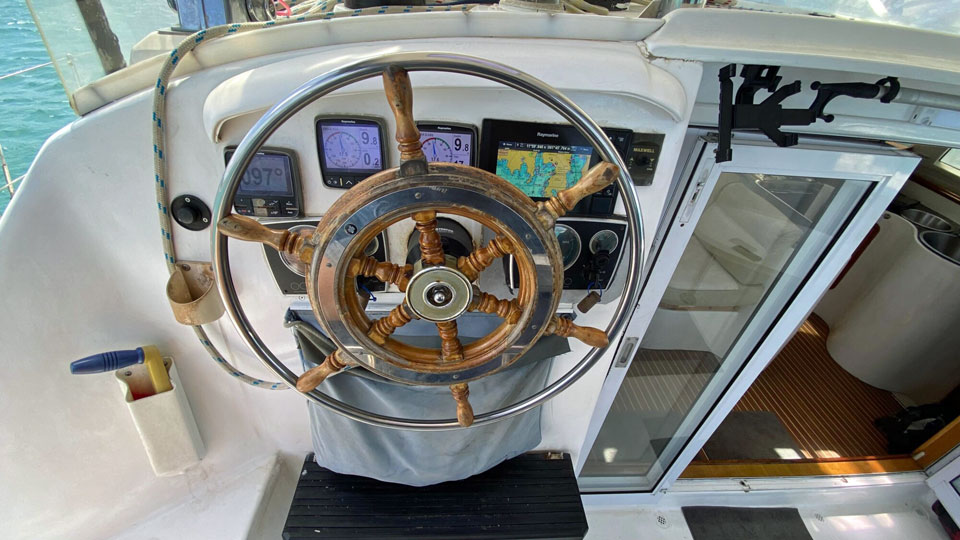

The helm

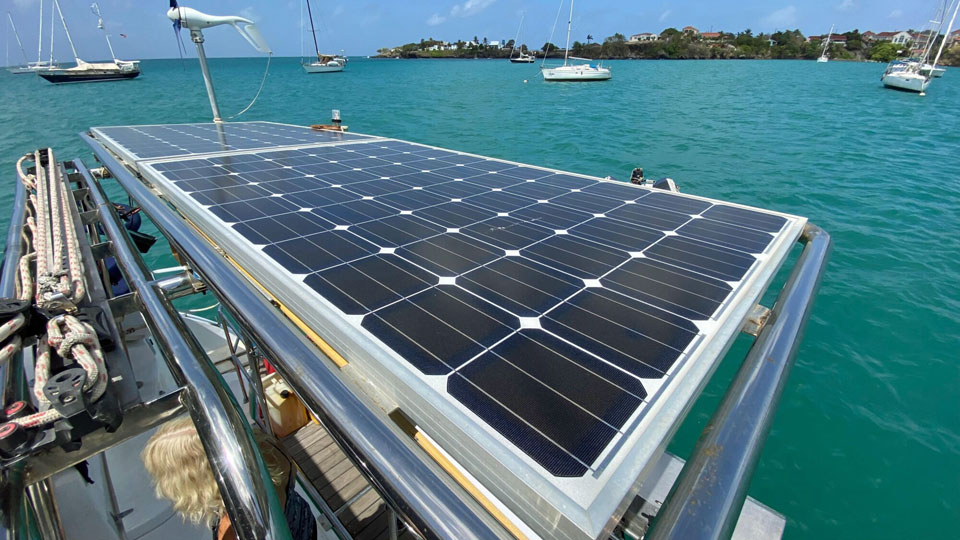

A pair of solar panels on the gantry

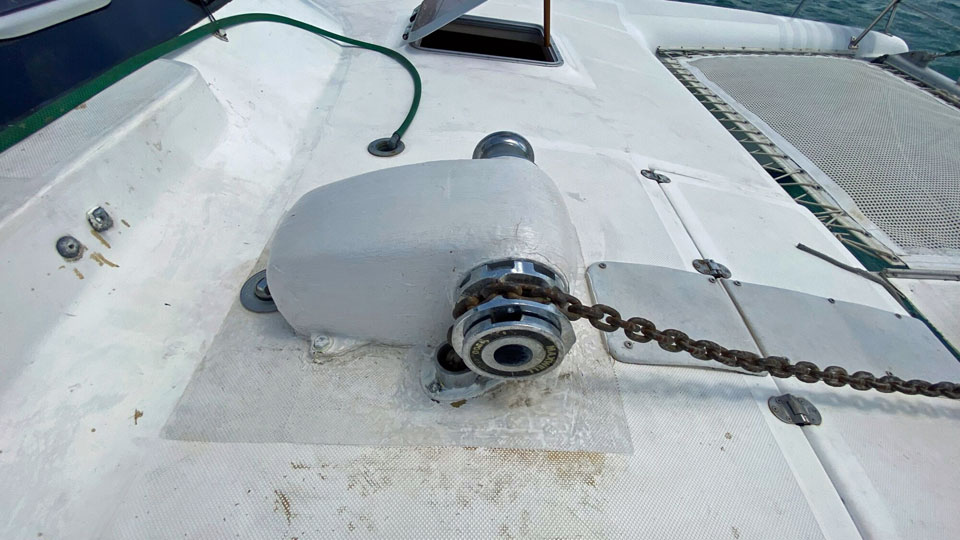

Anchor windlass

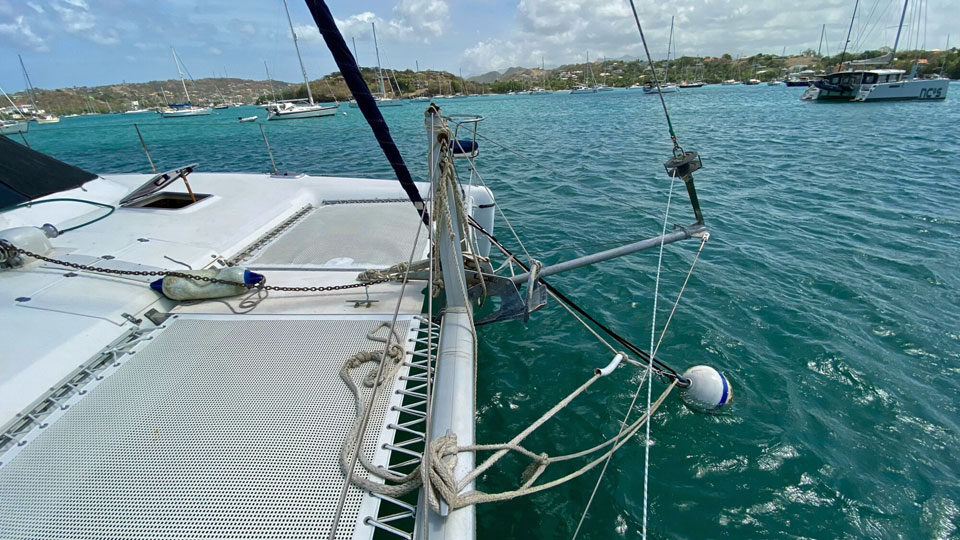

A short bowsprit for the gennaker

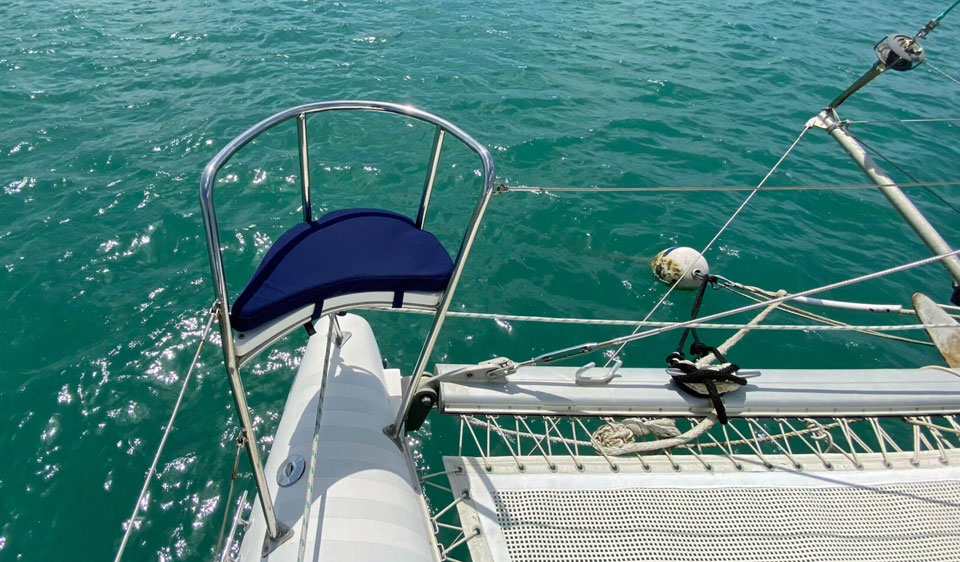

Perfect for dolphin watching

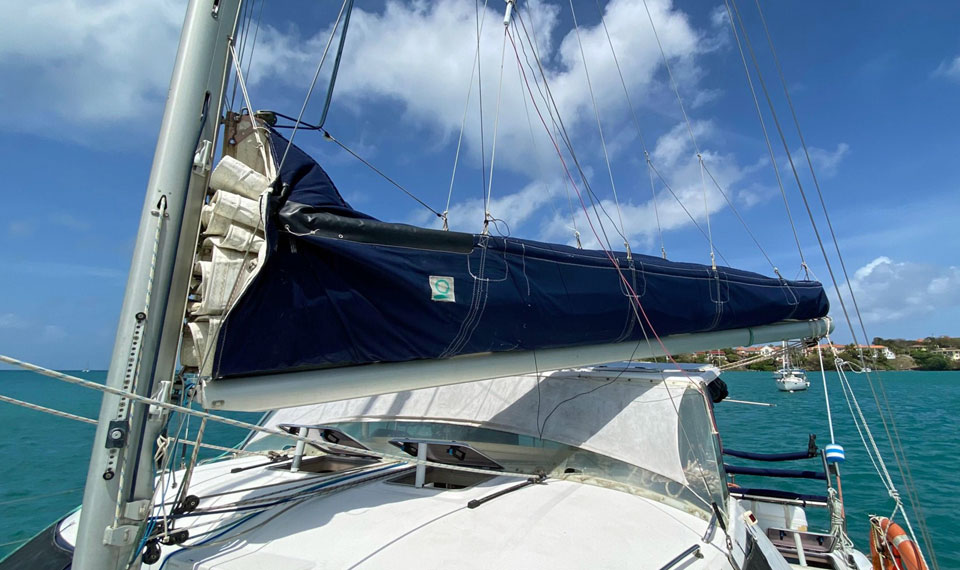

The stackpack

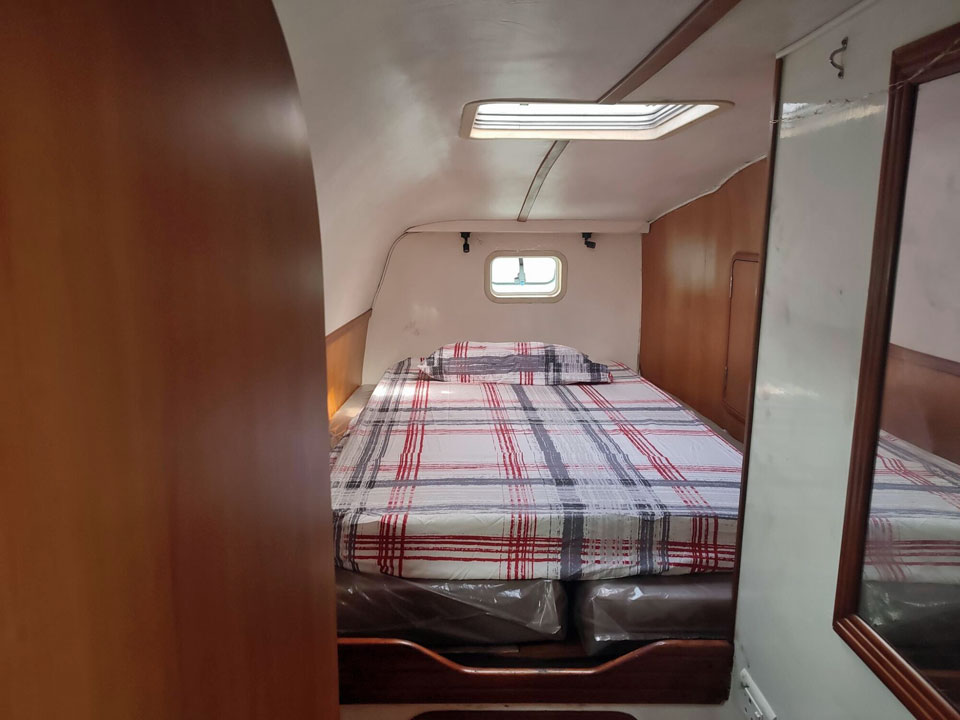

Queen berth #1

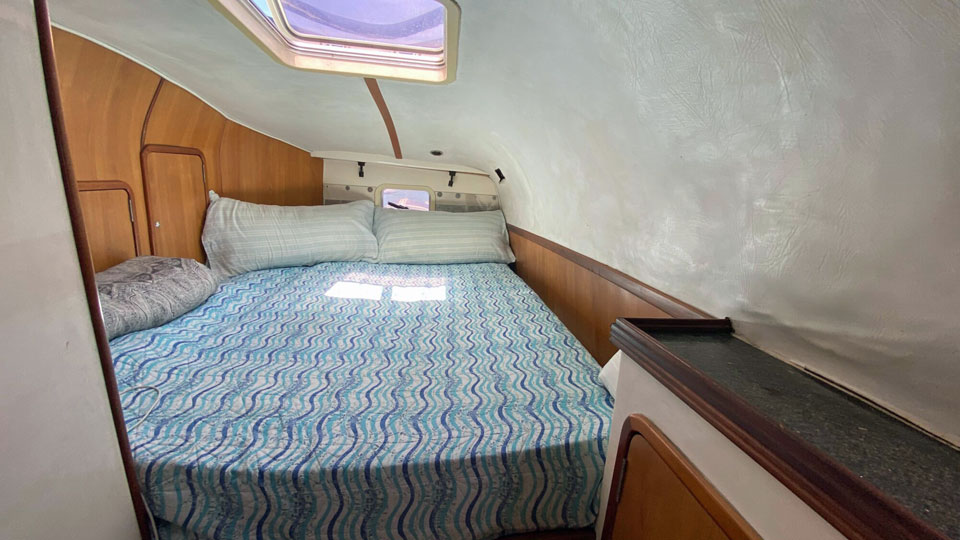

Queen berth #2

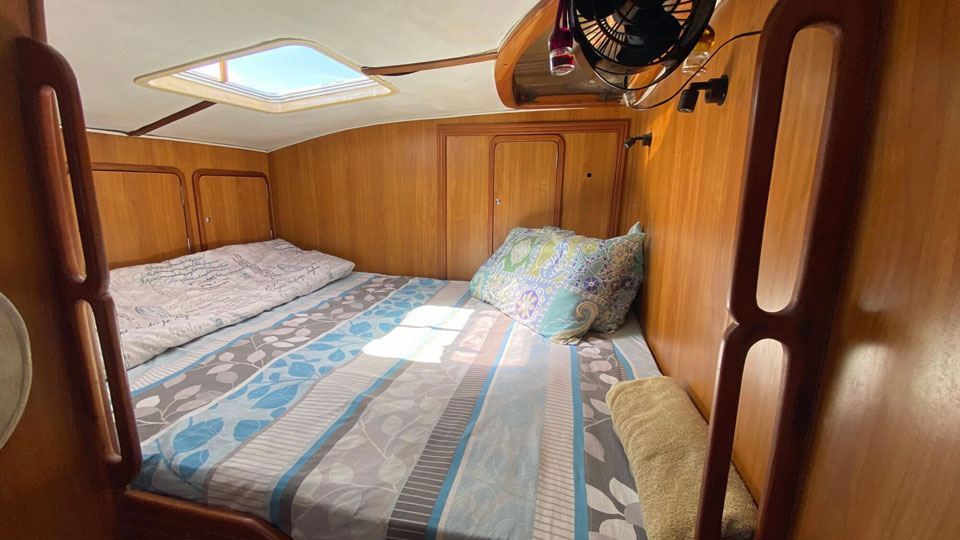

Queen berth #3

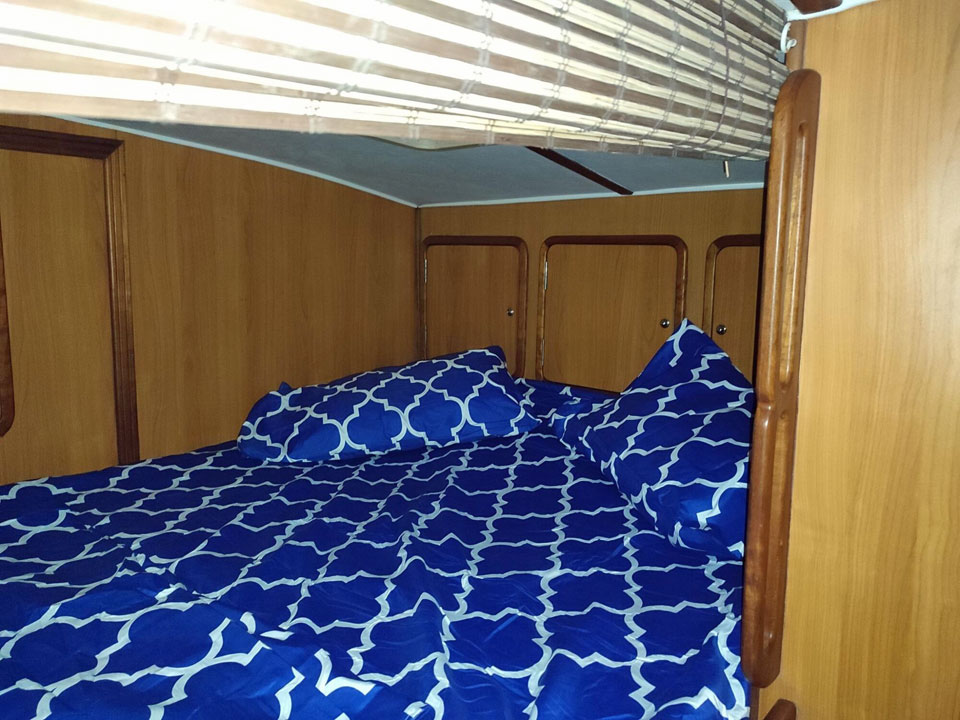

Queen berth #4

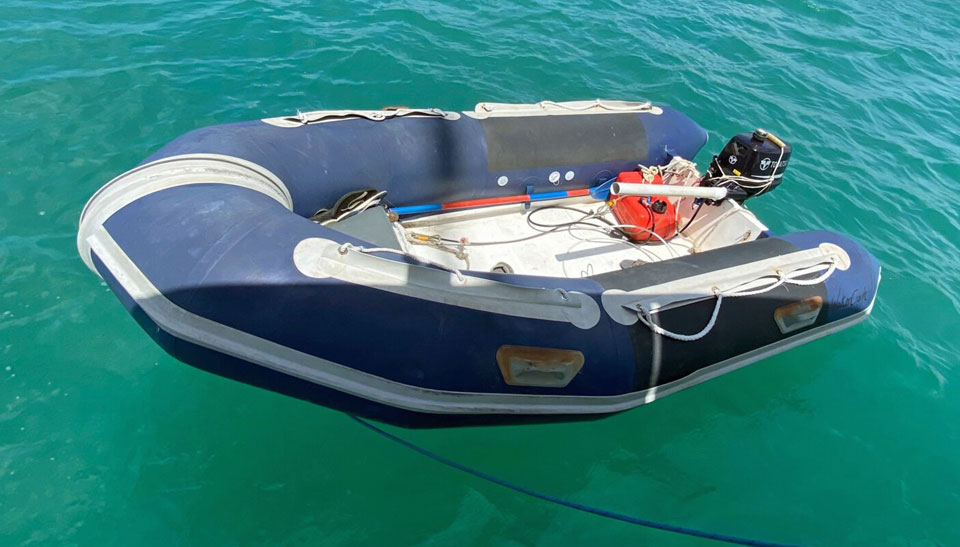

10ft dinghy with 9.8 Tohatsu 2-stroke outboard engine

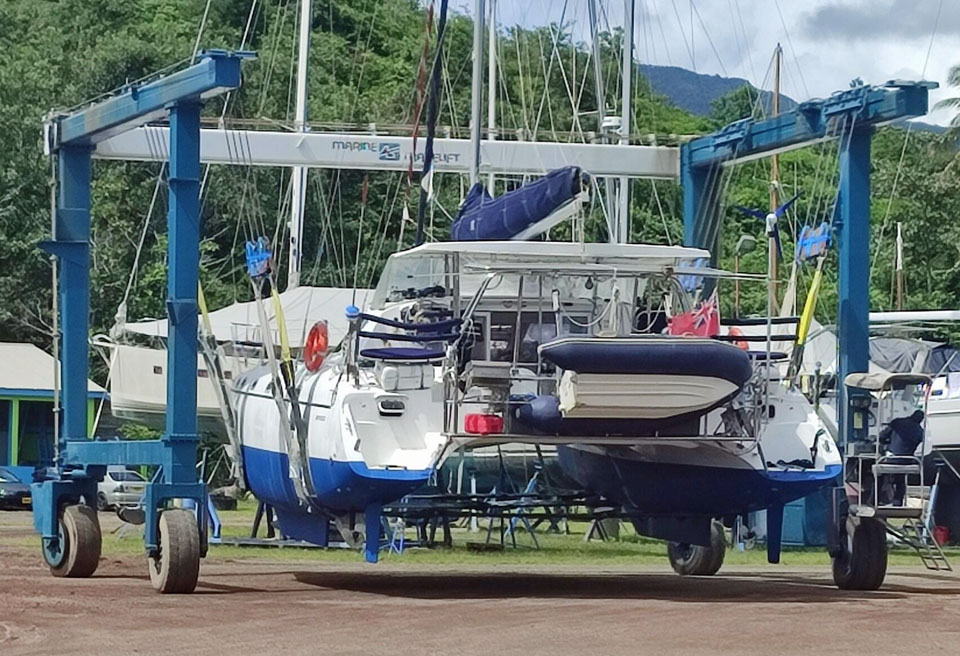

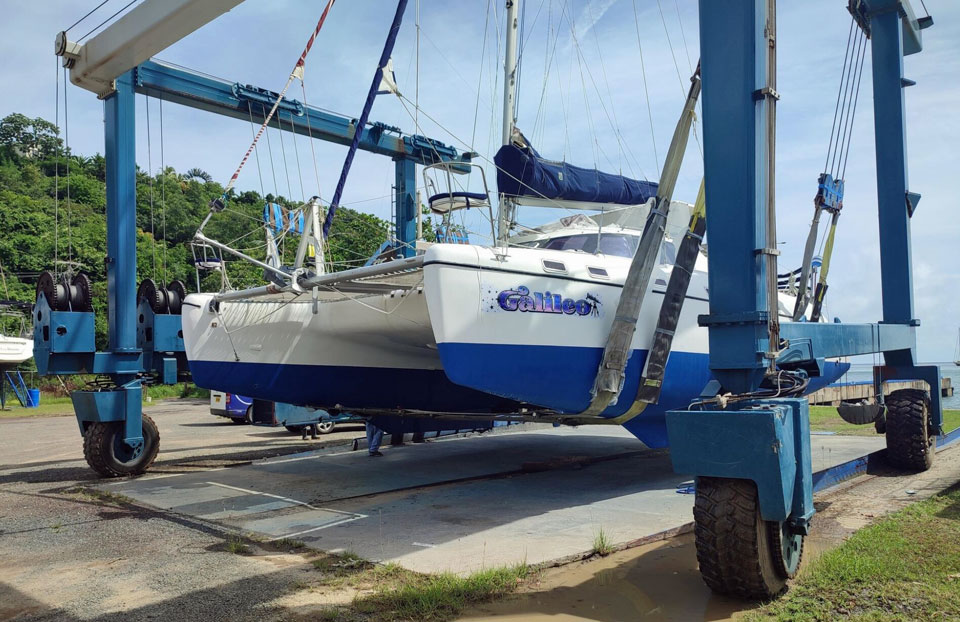

In slings
Heading back to her natural environment
