The Jeanneau 53 Sailboat
Specs & Key Performance Indicators

The Jeanneau 53, a fractionally rigged light displacement cruising sloop, was designed by Philippe Briand and built in France by Jeanneau.

Published Specification for the Jeanneau 53

Underwater Profile: Bulb-fin keel & spade rudder

Hull Material: GRP (Fibreglass)

Length Overall: 52'8" (16.1m)

Waterline Length: 45'9" (14.0m)

Beam: 15'8" (4.8m)

Draft: 7'6" (2.3m)

Rig Type: Fractional sloop

Displacement: 32,926lb (14,935kg)

Ballast: 10,990lb (4,985kg)

Designer: Philippe Briand

Builder: Jeanneau (France)

Year First Built: 2008

Published Design Ratios for the Jeanneau 53

1. Sail Area/Displacement Ratio: 22.2

2. Ballast/Displacement Ratio: 33.4

3. Displacement/Length Ratio: 153

4. Comfort Ratio: 27.3

5. Capsize Screening Formula: 1.9

Summary Analysis of the Design Ratios for the Jeanneau 53

eBook: How to Avoid Buying the Wrong Sailboat

Download this eBook to make sure you buy wisely!

1. A Sail Area/Displacement Ratio of 22.2 suggests that, in the right hands, the Jeanneau 53 will have enough performance to leave most other sailboats of similar waterline length well astern.

2. A Ballast/Displacement Ratio of 33.4 would usually mean that the Jeanneau 53 would have a tendency to heel uncomfortably in a gust, and need to be reefed early to keep her sailing upright in a moderate breeze.

However, as she has much of her ballast concentrated in a bulb at the foot of her keel, she's likely to be considerably stiffer than her published Ballast/Displacement Ratio might suggest.

3. A Displacement/Length Ratio of 153 tells us the Jeanneau 53 is a light displacement sailboat. If she's loaded with too much heavy cruising gear her performance will suffer to a degree.

4. Ted Brewer's Comfort Ratio of 27.3 suggests that crew comfort of a Jeanneau 53 in a seaway is similar to what you would associate with the motion of a coastal cruiser with moderate stability, which is not the best of news for anyone prone to seasickness.

5. The Capsize Screening Formula (CSF) of 1.9 indicates that a Jeanneau 53 would be a safer choice of sailboat for an ocean passage than one with a CSF of more than 2.0.

More about the Jeanneau 53 Sailboat...

The Jeanneau 53 was launched in 2008 and replaced the Sun Odyssey 54DS in the company's product line. It was also sold as the Sunsail 53 for charter purposes.

The Jeanneau 53 has a modern and elegant look, with a low-profile blister-type coachroof, a plumb bow, a long waterline and a wide transom. The hull is made of solid fiberglass with a glass structural grid and an epoxy-encapsulated cast iron keel. The deck is injection-molded with balsa core panels and features flush hatches, teak trim and stainless steel fittings.

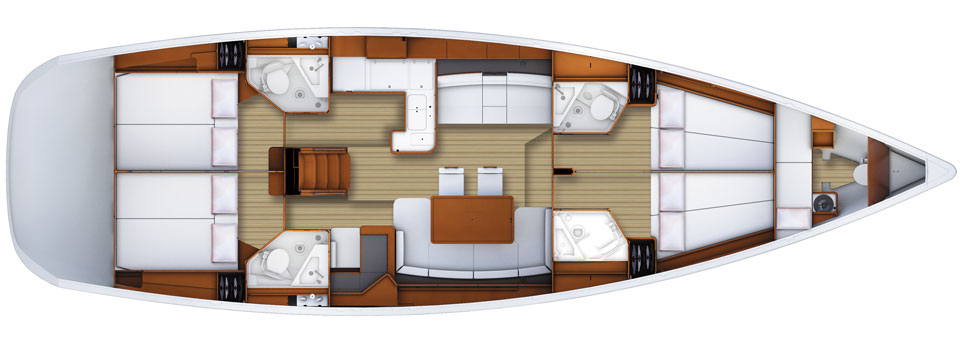

Just one of the accommodation layout options available for the Jeanneau 53

The Jeanneau 53 has a large rig with a fractional sloop configuration and a deck-stepped mast. The mast can be either standard or performance, with different heights and materials. The standard mast is made of aluminum and has two sets of swept-back spreaders, while the performance mast is made of carbon fiber and has three sets of spreaders. The sail area can vary from 1,420 to 1,590 square feet, depending on the mast and rig options. The sails include a furling genoa, a fully battened mainsail with lazy jacks and bag, and an optional gennaker or spinnaker.

The Jeanneau 53 has a balanced spade rudder and can be steered by twin wheels at the helm station. The cockpit is spacious and divided into two areas: a social area forward with a large U-shaped settee and a folding table, and a working area aft with the wheels, the engine controls, the instrument panels and the winches. The cockpit also has a line locker in the sole, a sliding companionway hatch that can be fixed at different heights, and an optional sprayhood and bimini. Aft of the cockpit, there is a wide swim platform that can be lowered or raised electrically.

Accommodation
The Jeanneau 53 has a number of layout options to suit owners and charterers with three to five cabins and three to four heads. The cabins can be located either forward or aft, depending on the layout chosen. The forward cabins can be either one large master stateroom with an en suite head and shower, or two symmetrical double cabins with a shared head and shower. The aft cabins can be either one full-width owner's stateroom with an en suite head and shower, or two asymmetrical double cabins with separate heads and showers. A small crew cabin can also be added in place of the sail locker at the bow, and a small passage cabin with two single bunk beds can also be added on the starboard side.

The saloon is bright and spacious, thanks to the large windows on the coachroof and hull sides. It features a U-shaped settee to starboard that can seat up to eight people around a folding table, and two armchairs to port that can be used as extra seats or storage units. There is also plenty of storage space under the seats, behind the cushions and in the cabinets along the hull sides.

The galley is located on the port side aft of the saloon. It is L-shaped and well-equipped with a three-burner stove with oven, a double sink with hot and cold water, a top-loading fridge/freezer, a front-loading fridge, a microwave oven and ample counter space and storage lockers.

The navigation station is located aft of the saloon on the starboard side of the boat. It has a large chart table with storage drawers underneath, a swivelling seat, an electrical panel, an instrument panel and space for additional electronics.

The interior of the Jeanneau 53 is finished in teak woodwork with white leather upholstery. It has LED lighting throughout, as well as ventilation fans, air conditioning and heating systems.

Hull and Deck
The hull of the Jeanneau 53 is solid fiberglass with polyester resin and an isophthalic gelcoat finish. It has a moderate V-shape that provides stability and comfort in various sea conditions. It also has a chine along the aft section that increases the waterline length and the interior volume. The hull has a vinylester barrier coat to prevent osmosis and a protective epoxy coating on the keel.

The deck of the Jeanneau 53 is injection-molded with balsa core panels that reduce weight and increase stiffness. It has a non-skid surface and teak trim on the cockpit floor, seats and transom. It also has flush hatches, portholes and dorade vents that provide light and ventilation to the interior. The deck has stainless steel handrails, stanchions, lifelines, cleats, fairleads and bow and stern pulpits. It also has a double anchor roller, an electric windlass, a chain locker, a sail locker, a self-draining anchor well, six mooring cleats, two genoa tracks, two genoa sheet winches, two coachroof winches, two halyard winches, a mainsheet traveler, a boom vang, a backstay adjuster and various clutches and blocks.
