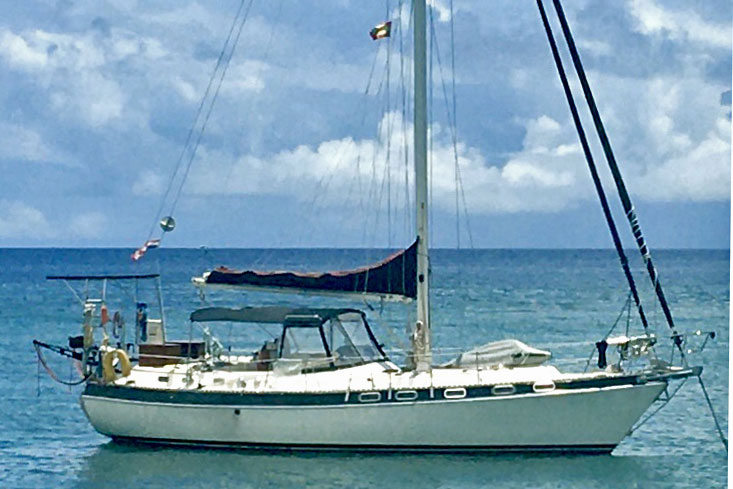

'Music II', a Morgan 41 Classic Sailboat for Sale

General Data for the Morgan 41 Classic

Type: Monohull

Designer: Charles Morgan

Builder: Catalina Yachts (USA)

Model: 41 Classic

Year Built: 1988

Rigging type: Sloop

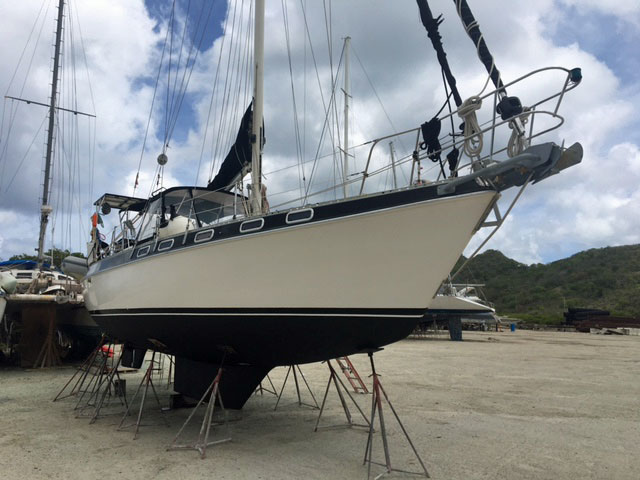

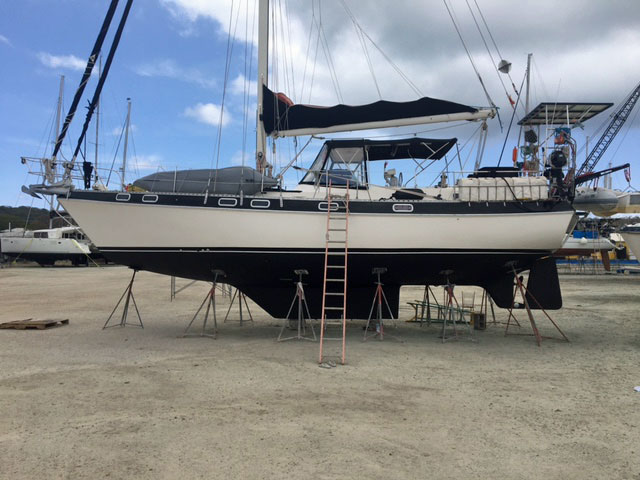

Music II's shoal-draught fin keel and skeg-hung rudder

Hull Details

LOA: 41.3”

LWL: 34”

Beam: 13.10”

Draft: 4.10”

Keel: Shoal draft fin keel, fully encapsulated (no keel bolts)

Rudder: Skeg hung rudder

Propeller: 3 blades bronze/ coated with epoxy primer & antifouling

Displacement: 23,000 lbs.

Ballast: 8,500 lbs. Internal lead

Material: GRP (solid) glass reinforced plastic

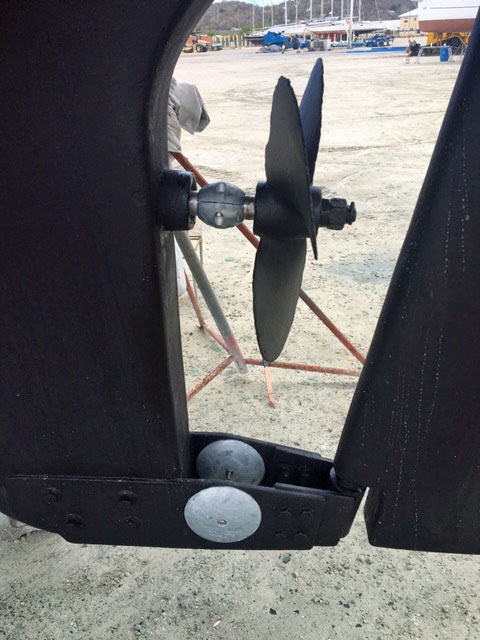

The 3-bladed prop is well protected

ACCOMODATION

Layout:

Headroom: 6 to 7 ft, all cabins

V-Berth: sleeps 2

Heads: 2 (manual in saloon/electric in master cabin)

Saloon: sleeps 3

Engine room: 1 (generator is also in the engine room)

Master Cabin: sleeps 2

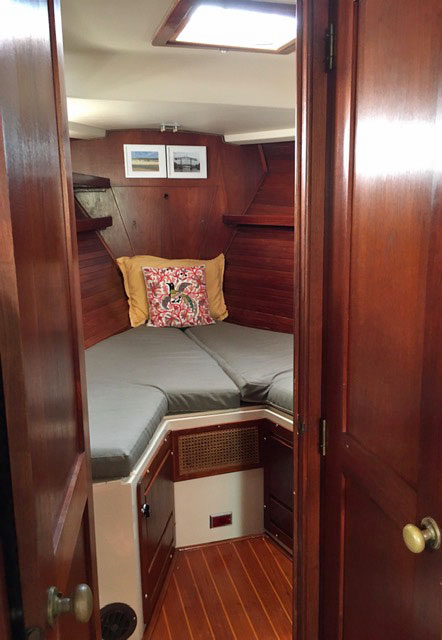

A V-berth in the forecabin

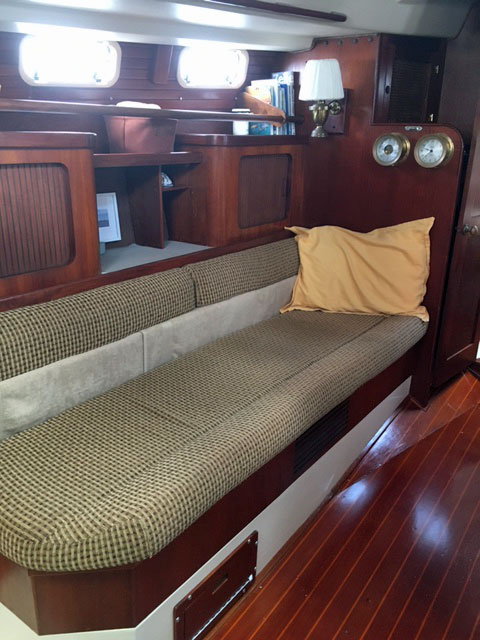

Settee berth in the saloon, port side

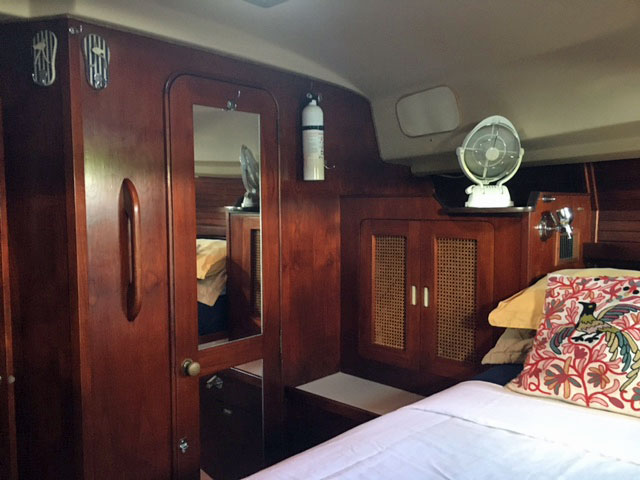

The master cabin

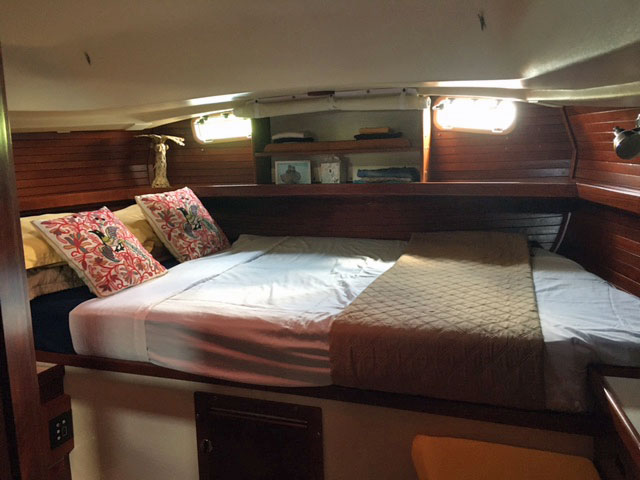

The double berth in the master cabin

'Walk-Through' access to the aft cabin is via a passage on the port side of the companionway

The secure galley is at the foot of the companionway steps on the starboard side

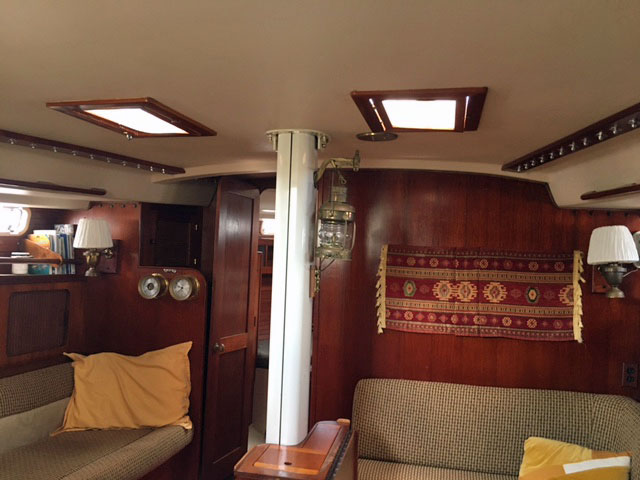

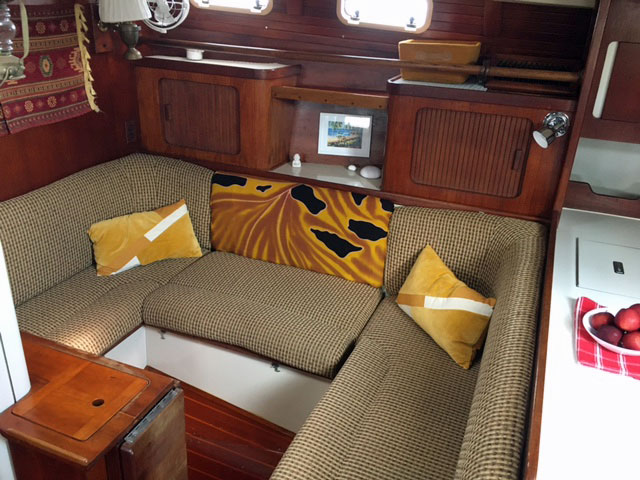

Seating in main cabin

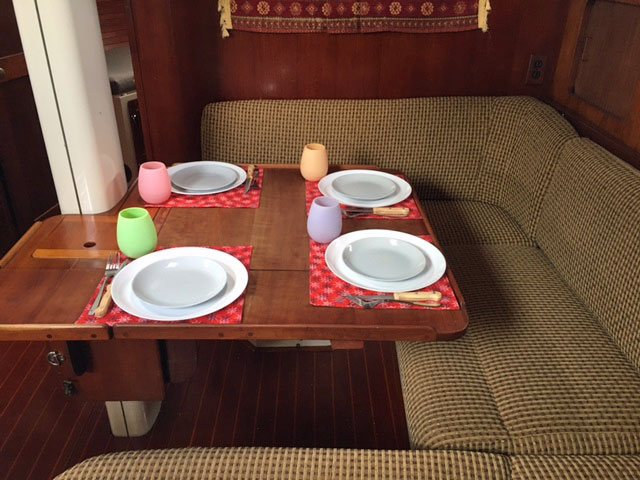

Four places around the saloon table

Note the generous beam, good condition of the headlining and screen-protected deck hatches

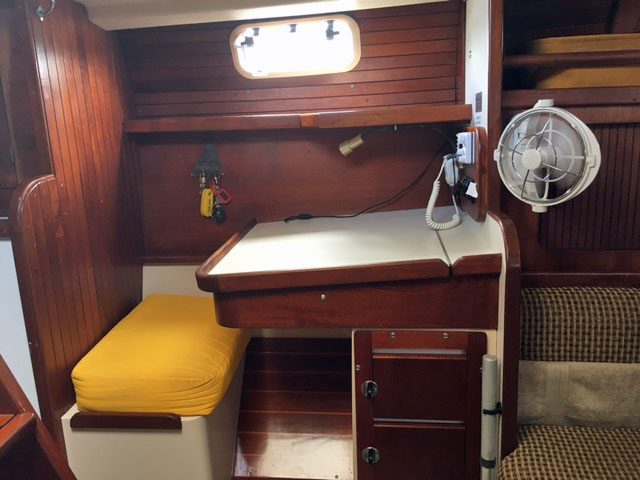

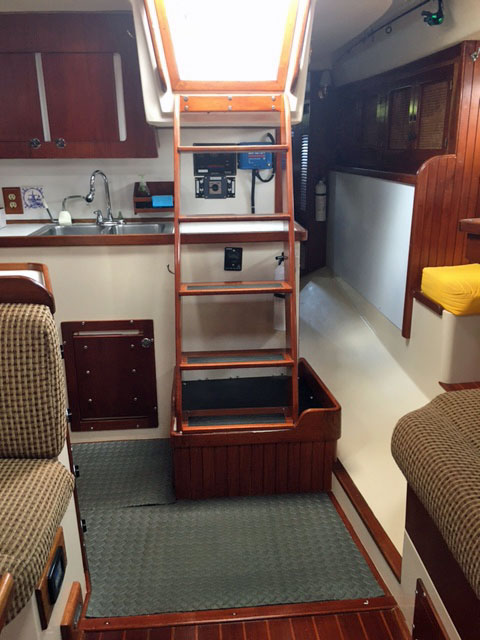

The chart table is at the foot of the companionway on the port side

Heads

Forward: Manual/Jabsco

Aft: Electric/Raritan (serviced June 2022)

Both toilets have 3-way valves for discharge direct overboard or holding tank (via deck pump out fitting outlet)

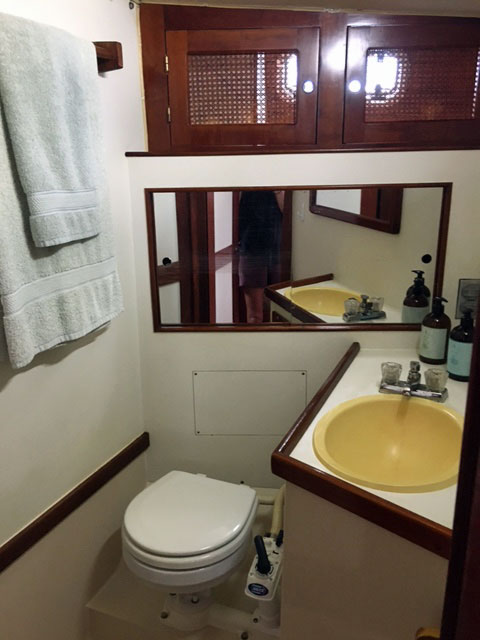

The forward head

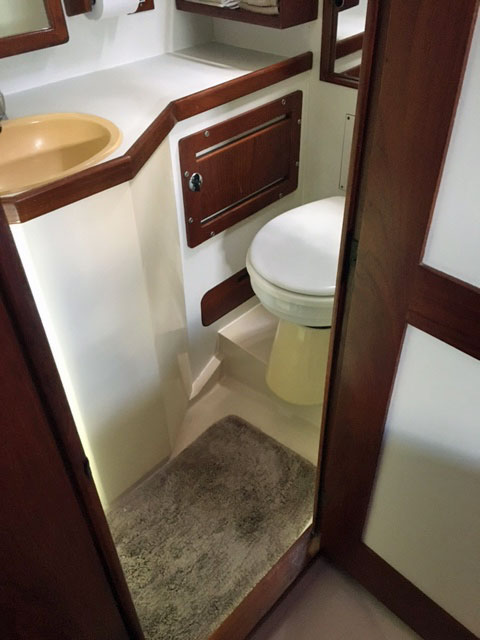

The aft head

Showers

Aft head: 1 (hot/cold)

Swim platform: 1 (cold)

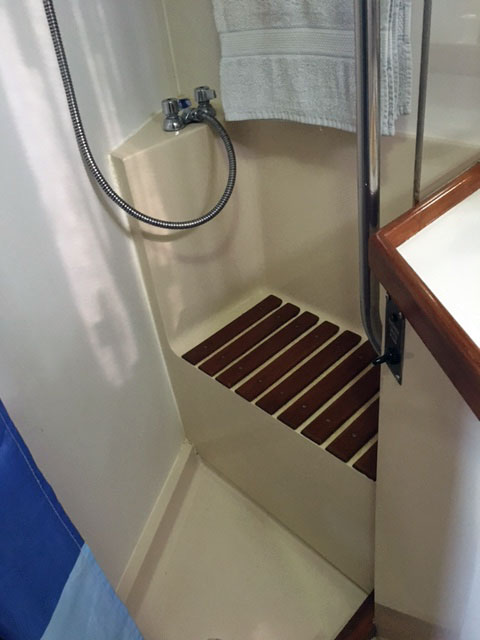

Shower in the aft head

Tankage

Freshwater tank (port): 120 Gallon

Freshwater tank (starboard): 80 Gallon

Note: Water tanks filled via a 25-gallon Plastimo potable water bladder plus 12V transfer pump, hoses, and connections; powered in cockpit

Diesel tank (starboard): 80 gallon

Holding tank (forward): 9 gallon

Holding tank (aft): 30 gallon

Miscellaneous

Grab rails throughout

USB plugs installed throughout for convenient charging of devices (6)

AC outlets throughout

LED lighting throughout (including engine room/cockpit)

Camfrano Sirocco II fans throughout vessel (5)

Teak wood finishing walls/floors (excellent condition)

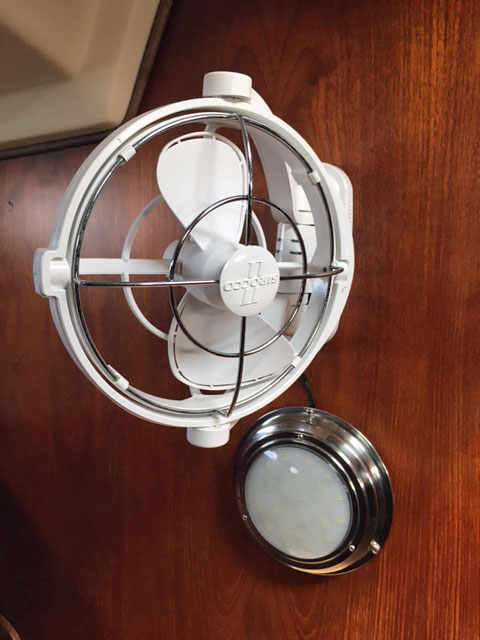

One of the five Camfrano Sirocco II fans

Galley General/Propane

Spacious galley, with ample work space and storage

Propane system (stove/oven): 10 lbs. propane cylinder under cockpit seating, with pressure gauge, regulator, low pressure solenoid valve, and alarm (professionally installed).

System delivers propane to a Seaward 2-burner gimbal stove/oven

Propane system (BBQ): Installed on aft rail with 6lbs. propane cylinder

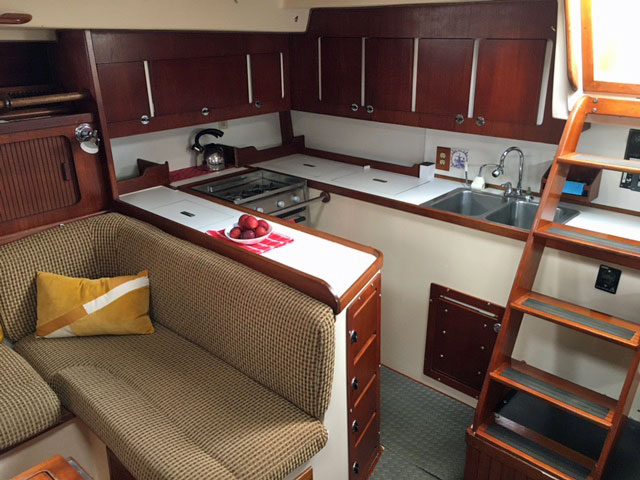

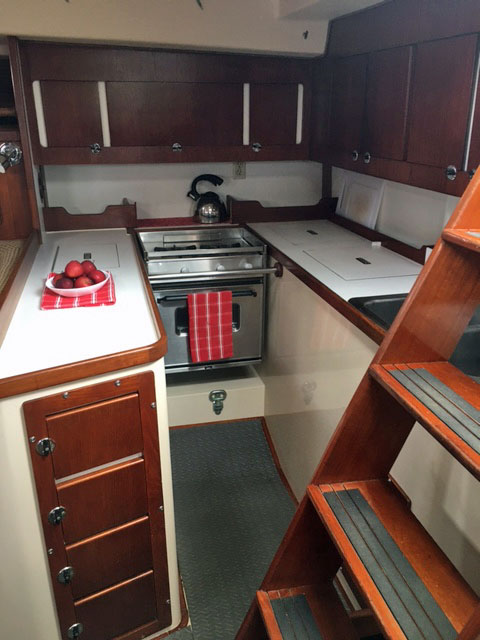

The galley, at the foot of the companionway on the starboard side

DECK

Sails & Rigging

• Genoa/furling: Harken ESP 2,135% with Sunbrella sacrificial/good condition
• Solent/furling: Hood SeaFurl, 2015, 100% with Sunbrella sacrificial/good condition
• Main Sail: Fully battened/3 reef/good condition
• Backstays (2016)
• Running back stays (2016)
• Outer forestay genoa furling (2016)
• Solent furling (2015)
• Standing rigging and running rigging inspected by FKG St. Maarten March 2022
• Radar reflector
• Keel stepped up mast
• Goose neck boom connection
• Lazy jacks
• Stack pack (2021)
• Downhaul
• Traveler system
• Downwind preventer system
• Eight exterior chain plates
• Head sail tracks on deck

Ground Tackle/Windlass/Mooring/Davits

Bow sprit: Custom aluminum pipe with 2 anchor rollers

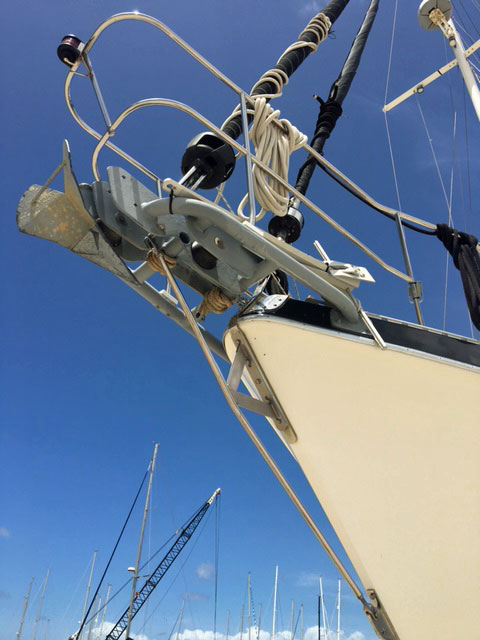

The custom-build bowsprit and extended pulpit

Main anchor: Delta 45 lbs. anchor with new 205 3/8’ galvanized marked chain (May 2022), plus 150 feet spliced 3-stranded marked nylon rope (15 mm),

Secondary anchor: Fortress FX 37 with approx. 40 feet 3/8 chain plus 150 feet spliced 3-stranded nylon (15 mm)

Third anchor: Fortress FX 55 (with 300 feet 3-stranded nylon 15 mm; storm anchor)

Windlass: Lewmar 12V/1,000W, capable of winching both chain and rope; manual recovery/deploy system

Anchor wash

2 Dinghy Davits: Capacity - 125 lbs each

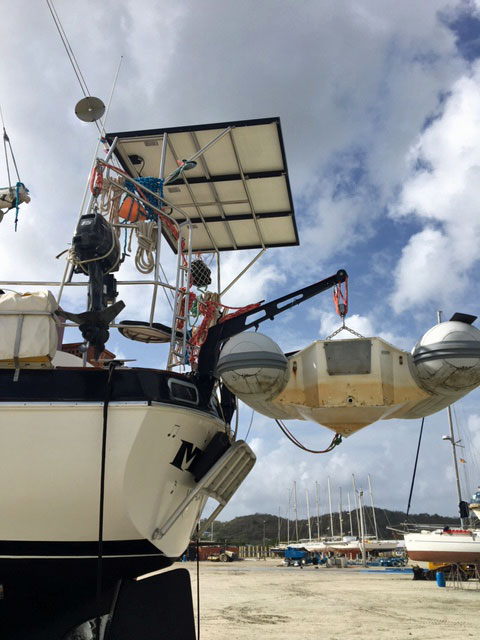

Davits, solar panels and outboard motor storage

Winches

Mast halyards: 3 Lewmar 16, not self-tailing

Headsail sheets: 2 Lewmar 52.2 ST self-tailing port

Mainsheet: 1 Lewmar 40.2 self-tailing

Dodger/Bimini/Cockpit

• Large/tall companionway dodger with Isinglass glass front/side screens/ hard top
• Custom Bimini on stainless steel structure (Sunbrella)
• Removable Isinglass side panels (can be rolled up)
• Removable aft cockpit sunshade
• 2 lights under dodger (white/red)
• Closed cell foam cockpit cushions
• Foldable Dining table
• 2 foldable chairs

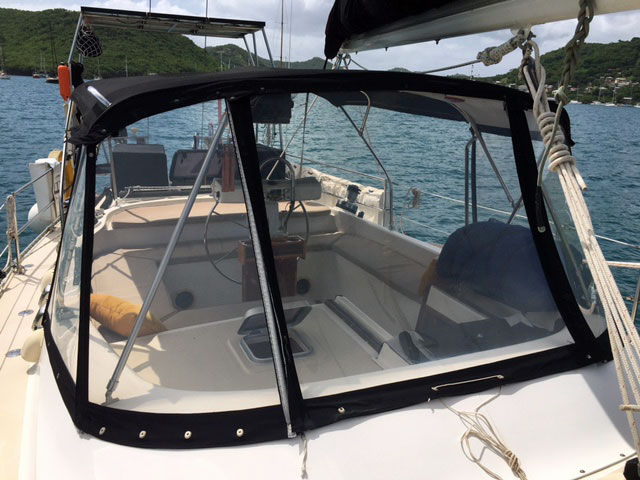

The cockpit and companionway is well-protected from the elements by the tall dodger

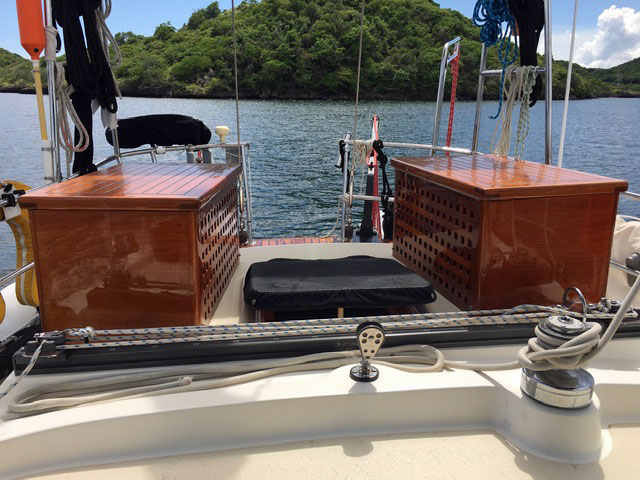

Two large custom-built teak-lacquered storage boxes on the afterdeck

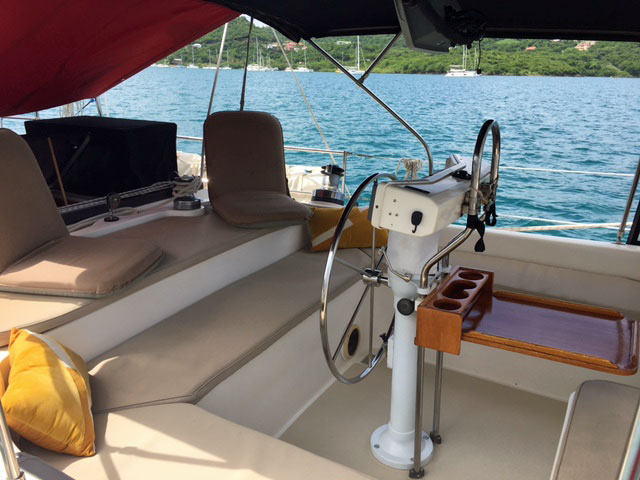

Edson pedestal mounted wheel operates the cable steering system and is supported by a type 1 linear drive autopilot

MECHANICAL & ELECTRICAL

Engine

• Model: Yanmar 4 JHBE
• Engine Number 02986
• Power: 40 HP@ 3,500 RPM/44 HP max @ 3,600 RPM.
• Engine hours: 3,334
• Shaft seal: drip seal with Flax packing
• Fuel filter: 2 Racor 500 fuel filters and 1 spin on engine fuel filter
• Start motor: 12V-1.8kW
• Alternator: Balmar 12V/100 Amp
• Marine gear: Yanmar KM4A/gear no. 1289/gear ratio 2.63

Note: Oil & fuel filter maintained as per manufacturer recommendation.

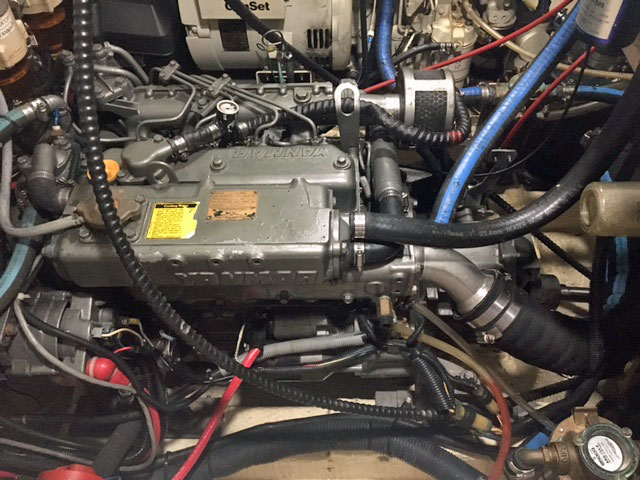

The Yanmar 4 JHBE marine diesel engine

Refrigeration/Freezing

Equipped with two cooling systems, which work independently or together.

Primary system:

Newly installed Isotherm (Indel Webasto Marine/Compact 2510 Isotherm system in conjunction with an air-cooled compressor modelBD50F with the refrigerant 134A).

A 12V spillover fridge/freezer system. Works with a large evaporator plate (self-contained freezer with lid) in the outboard cooling box with circular ventilation fan system to cool remaining outboard box and inboard box.

Secondary back-up 110V/60Hz system:

Grunnert cold plate system (refrigerant is R404A). Works by charging large cooling plates (located in each cooling box) via generator. The compressor is seawater cooled.

Two 2.6 cubic feet cooling boxes (under galley counter) with thermostat in each

Air-conditioning

Two reverse cycle ducted air-conditioning systems - saloon (5,000 BTU)/aft cabin (6,000 BTU)

Water pressure

2-gallon inline pressure accumulator/pressure tank, model Waterworker HT2B

Hot water

Water heater 110 VAC/5 gallon

DC system: 12 Volt

House bank: 4 x 230 AMG, size 4D batteries /2024, Super Cycle batteries Brand Victron.

Starter battery:

800 CCA lead acid battery

Charge controller & battery monitoring

Battery Charging:

100A Balmar Alternator via the main engine, externally regulated, or via

• Generator by Xantrax link 2000-2500/130/60HZ inverter charger, or via
• 2 solar panels, 2x335W/each, Victron MMPT controller 100/50A (2023), or via
• Shore power

12V System supplies all lighting systems, fans, USB plugs, all 12V pumps, navigation system, autopilot, VHF radio, 12V spillover fridge/freezer box, radio-CD system

Solar

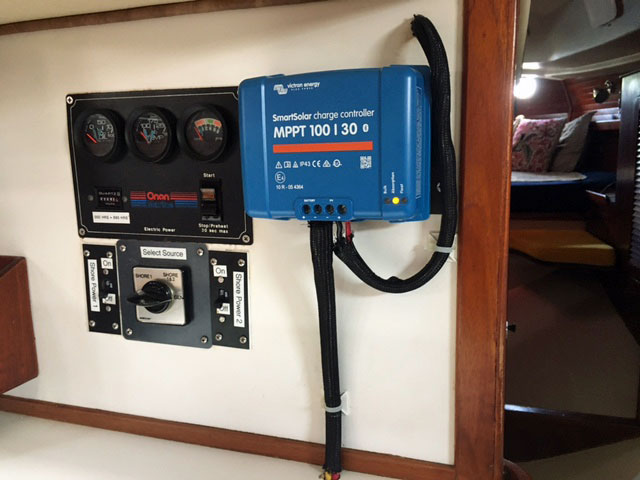

770W solar panels, 2x335W/each, Victron MPPT controller 100/50A (2023)

AC system: 110 Volt System/60HZ

Electrical system: 110V/60 HZ supplied via the Xantrax 2500W/130A inverter charger/4 Kw Onan generator/or via shore power supply.

Shore power:

Equipped with two 125V 30A shore power sockets, via 2 x 50 ft. shore cable and 2 x 30A to a 50A pig tail connectors to connect to a single 110V/50A/60Hz supply.

110V supplies Grunnert fridge system/air-conditioning system/water heater/AC outlets.

Generator

• Brand: Onan Generator
• Capacity: 4 Kw.
• Hours: 1,625
• Model: 4.0 MDKC 3 CR/1A/60 hz.
• Serial no: F85076838

Note: Oil & fuel filter maintained as per manufacturer recommendation

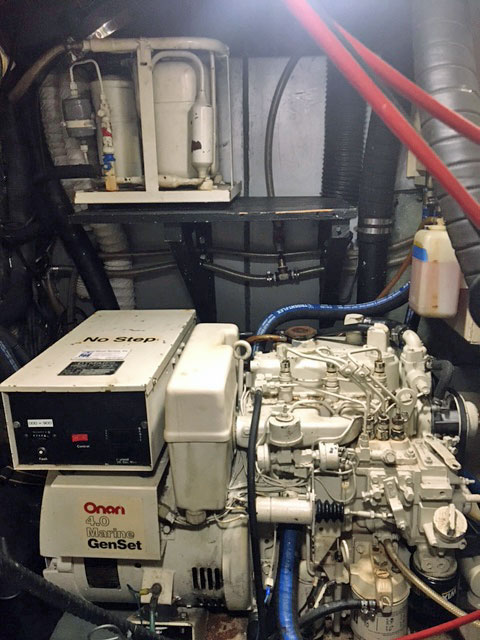

The Onan generator in the engine bay

Navigation & Electronics

Compass: Richie-Binnacle type

Chart Plotter: Garmin 4212 GPS

Auto pilot: Raymarine 7002 autopilot

Knot meter: Raymarine ST 60, Windvane top of mast

Depth Sounder: Raymarine ST 60

Wind gauge: Raymarine ST 60

Radar: Raymarine radar

VHF radio: Standard Horizon Matrix AIS/GPS VHF radio with loud hailer

VHF antenna: Primary at top of mast; back up VHF antenna (3-meter pole installed at aft.)

Cockpit RAM: Microphone/sender VHF

Radio/CD: FM radio system with CD in cockpit with 2 stereo cockpit speakers

TV Antenna: Hoop type mast TV Antenna with coax cable into saloon

Lighting protection: Sprit broom in top of mast

Navigation lights: LED

OTHER

Spares/Tools/Accessories/Inventory

• Technical manuals are available for all systems Emergency tiller
• Assorted spare lines/halyard
• Routine maintenance parts: filters/impellers/flax packing/lubricants/oils
• Tools: Hand tools for routine maintenance, bolt cutter,
• Pump motors/spare head motor/wet ends service kits
• Assorted 12 V LED bulbs
• West Marine Tahiti Binoculars
• 50+ assorted hose clamps
• Replacement engine mounts (4)
• Courtesy flags (Grenada to New England)
• Dress ship bunting flag assembly
• Fully outfitted galley (4 individuals)
• Washdown gear
• Assorted cleaning products/repair epoxies/waxes
• Shop vac 110V wet/dry
• Lewmar windlass spares
• Companion way bug screen/dark cover/locking wood panels
• Oil lamp
• Various Garmin SD cards
• Complete interior cushions, slip cushions, and linens, pillows, blankets (excellent condition)
• Boston ship clock and Barometer
• Overhead hatches equipped with bug screens
• Fishing rod and fishing gear
• Jerry Cans - Diesel (3x5 gallon), Fuel (1x5 gallon) and Water (1x5 gallon)
• Numerous functional spare lines and fenders
• Sun protection on hatches and wood work (Sunbrella)

Note: personal effects are excluded

Safety

• Double stainless steel insulated life lines on stainless supports
• Type II foam filled collar life jackets (4 adult/2 kids)
• Radar reflector
• Personal Locator Beacon ACR ResQlink 406 mhz (new battery 2021)
• Safety harness/tether Jack lines (2)
• Viking 6-person valise life raft (serviced by Sea Safety Service, Grenada Jan 2021/next service due Jan 2024 Serial no. 11690425)
• Lifesling man overboard recovery
• Horse shoe life buoy connected to MOB pole
• Fire extinguishers: 4 x 1 Kg DP
• Fire blanket
• Orion 25 mm alert/locator signaling kit/contains flares, signal shells, smoke flares, signal mirror, distress flag (expiry 2023)
• Sound signal device: compressed air horn
• 2 floating buoyancy cushions
• Navigation lights
• Red night lights (throughout cabin/cockpit)
• CO detectors (2)
• Propane detection system, Safe T-Alert
• First Aid kit
• Emergency hatch and porthole closure devices
• Saloon bilge pump: 2,000 GPH with float switch (manual/automatic)
• Aft bilge pump 1,100 GPH 12 V with built in float switch
• Saloon sump Pump Box: 800 GPH (manual/automatic)
• Emergency tiller
• Hoses on through hulls are double clamped hose clamps
• Bronze through Hull fittings connected to dynaplates slowing corrosion
• Lighting protection on top of mast
• 2 boat hooks
• Outboard MOB hoist or outboard motor mounting plate
• Bolt cutters

Listed upgrades from March 2020

• Retractable swim platform
• Cockpit shower (access to swim platform)
• Custom stack pack (main sail)
• Sacrificial stripe (Solent)
• 3 x 135 W solar panels
• Stainless steel solar panel arch
• 2-gallon inline pressure accumulator/pressure tank, model Waterworker HT2B
• Victron MMPT 100/30 amp Solar controller
• Camfrano Sirocco II fans (5)
• 12V DC spillover fridge/freezer cooling system
• USB plugs (6)
• 10ft Caribe dinghy
• Electric toilet serviced
• Sunbrella V-Berth cushion coverings
• Galvanized main anchor chain 3/8” (205 ft.)
• Freshwater accumulator tank
• Outboard serviced engine (March 2022)
• Inflatable Kayak/paddle

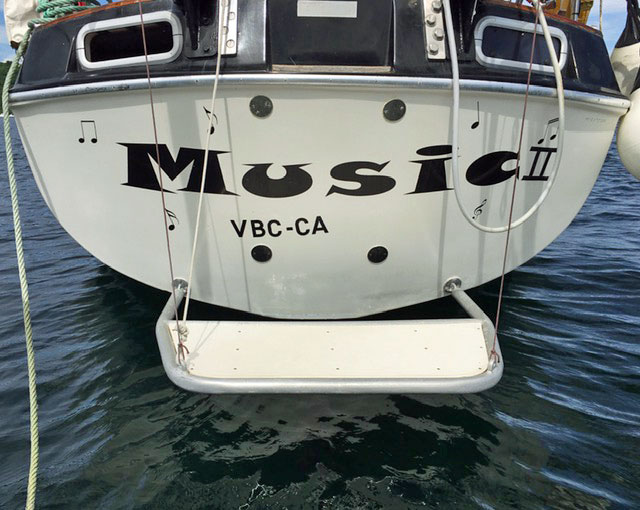

Swim platform down

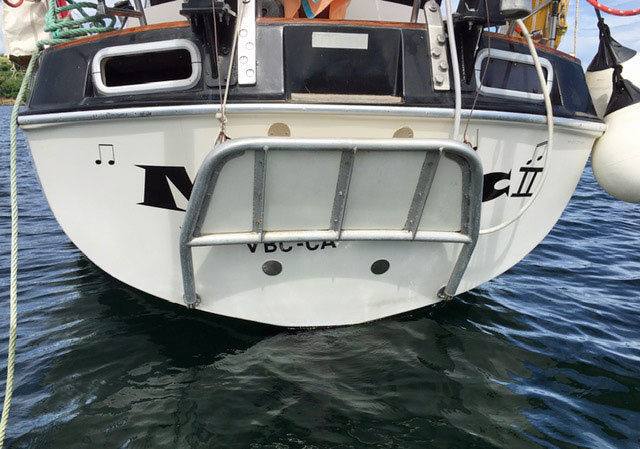

Swim platform up

She was hauled-out in June 2022 for antifouling, new anodes and hull waxing.

Dinghy & Outboard

• 10 ft Caribe dinghy, hard rib bottom
• 15 HP Suzuki DT 15A 2 stroke engine 2018, with lifting Harness, 6-gallon fuel tank, dinky anchor and dinghy storage box

Outboard serviced March 2022, Budget Marine, St. Maarten

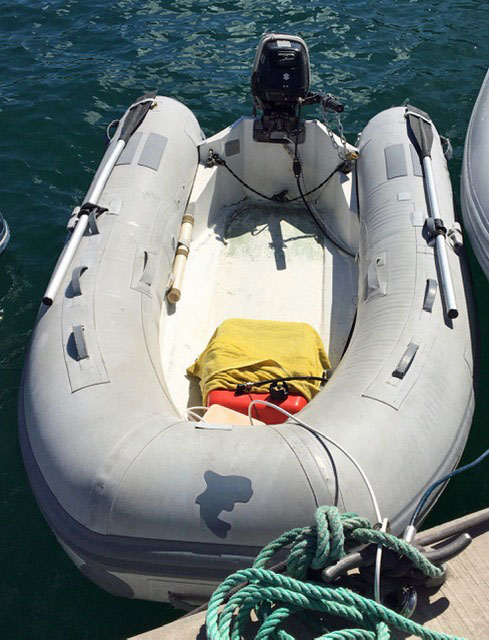

Music II's dinghy and outboard

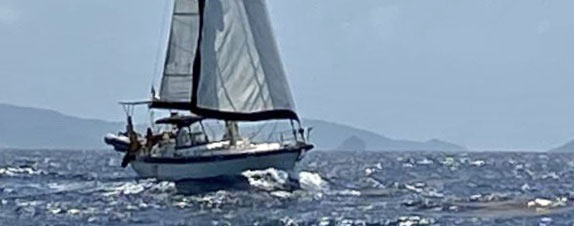

Asking Price for 'Music II', a Morgan 41 Classic

The Owner is Asking $92,500
