The Sheetbend
How to Tie It & When to Use It

The Sheetbend - also known as the Common Bend, Flag Bend or Becket Bend - is used primarily for joining ropes of different diameters.

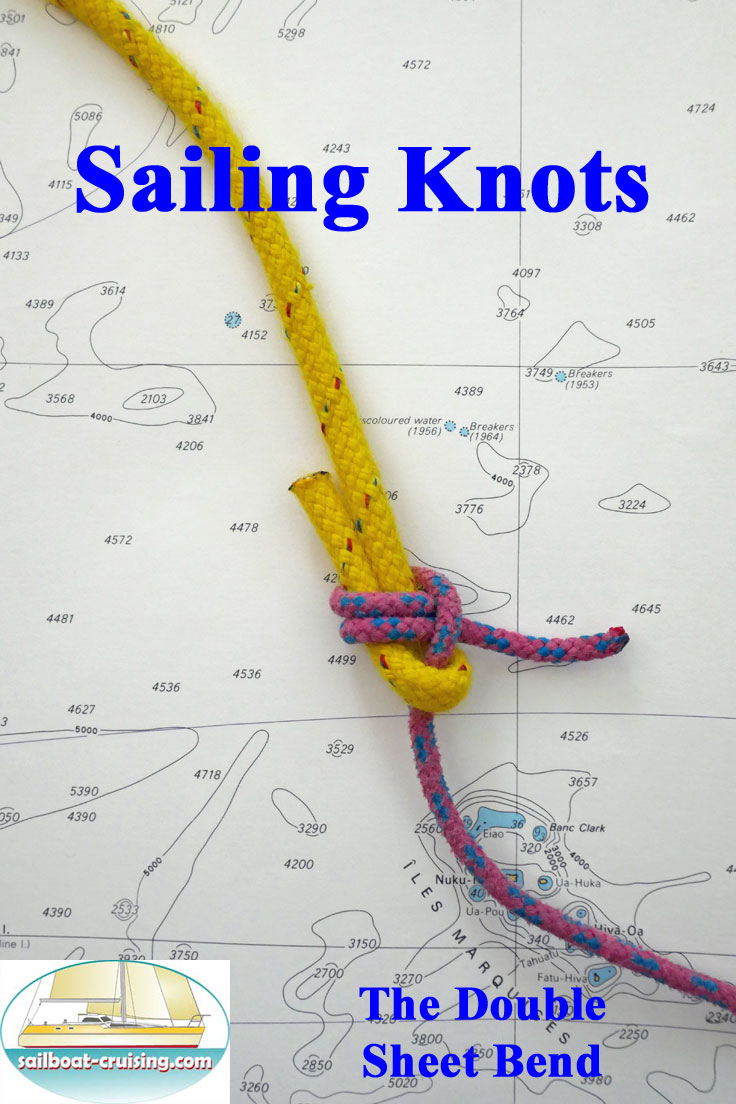

The Sheet Bend and the more secure Double Sheet Bend on Pinterest.

The thicker rope must be used for the simple bight as shown. However, it works equally well if the ropes are of the same size.

It's also known as a becket bend, weaver's knot and weaver's hitch and is often used to attach a heaving line to a heavier warp such as a mooring or towing line.

The Sheetbend is not a secure knot - particularly when tied with slippery synthetic lines - and can't be trusted to join ropes or lines which will be highly tensioned.

However the Double Sheet Bend with its additional turn, is much more secure - doubly so probably.


How to Tie the Sheetbend

How to tie the sheetbend; Stage 1

Stage 1

Form a bight in the thicker line;

How to tie the sheetbend; Stage 2

Stage 2

Insert the thinner line into the bight from back to front;

How to tie the sheetbend; Stage 3

Stage 3

Tuck the working end of the thinner line under the bight of the thicker line.

How to tie the sheetbend; Stage 4

Stage 4

Now tuck the working end of the thinner line under its own standing part, to lock it against the bight of the thicker line. All that needs to be done now...

How to tie the sheetbend; Stage 5

Stage 5

...is to cinch it up tight, and you have a finished Sheetbend.


How to Tie the Double Sheet Bend

How to tie the double sheet bend; Stage 1

Stage 1

Form a bight in the thicker line;

How to tie the double sheet bend; Stage 2

Stage 2

Insert the thinner line into the bight from back to front;

How to tie the double sheet bend; Stage 3

Stage 3

Tuck the working end of the thinner line under the bight of the thicker line.

How to tie the double sheet bend; Stage 4

Stage 4

Now tuck the working end of the thinner line under its own standing part and...

How to tie the double sheet bend; Stage 5

Stage 5

...tuck it under the bight of the thicker line for a second time;

How to tie the double sheet bend; Stage 6

Stage 6

Now tuck the working end of the thinner line under its own standing part, to lock it against the bight of the thicker line.

How to tie the double sheet bend; Stage 7

Stage 7

Cinch it up tight and you have the completed Double sheet Bend.

People also ask...

What does a sheet bend do?

What does a sheet bend do?

A sheet bend is a versatile knot primarily used for joining two ropes, especially if they are of different thicknesses or materials. Its structure allows it to hold firm under tension, making it a reliable choice for various applications. Here's what a sheet bend does:

  1. Joining Ropes: It effectively connects two ropes, even if they are of different diameters or materials.
  2. Secure Binding: The knot creates a secure and reliable connection that is less likely to slip, especially when under load.
  3. Ease of Untying: Despite its security, the sheet bend is relatively easy to untie, even after being subjected to tension.

Is sheet bend better than square knot?

Whether a sheet bend is better than a square knot (reef knot) really depends on the specific application. Each knot has its strengths and ideal use cases:

Sheet Bend:

  • Strengths:Excellent for joining two ropes, especially if they are of different diameters or materials. More secure and less likely to slip under load compared to a square knot. Easier to untie after being under tension.
  • Ideal Uses:Sailing and climbing where joining ropes is required. Temporary fixes and situations where security is important.

Square Knot (Reef Knot):

  • Strengths:Simple and quick to tie. Lies flat and is neat, making it good for binding and securing items that aren't under significant strain.
  • Ideal Uses:Binding bandages in first aid. Securing sails and lines in sailing. Tying packages and bundles.

Comparison:

  • Security: The sheet bend is generally more secure under load and less likely to slip compared to the square knot.
  • Ease of Untying: Both knots are relatively easy to untie, but the sheet bend has an edge when it comes to ropes that have been under tension.

In summary, if you need to join two ropes securely, especially if they are different in size, the sheet bend is the better choice. If you need a simple binding knot for less demanding tasks, the square knot is a quick and effective option

Why is it sometimes called a becket bend and a weaver's knot?

The names "becket bend" and "weaver's knot" for the sheet bend come from its historical uses and contexts:

  1. Becket Bend:The term "becket" refers to a loop or eye at the end of a rope. In nautical contexts, a becket bend is used to join a rope to a becket or a loop. This makes it a fitting name for the sheet bend, which is commonly used in sailing and maritime activities.
  2. Weaver's Knot:The name "weaver's knot" comes from its use in the textile industry. Weavers use this knot to join threads while working on looms. It provides a secure connection that's easy to untie, which is essential for weaving and other fabric-related tasks. Its reliability in joining different threads makes it a popular choice for weavers.

The sheet bend's versatility and effectiveness have made it a valuable tool in various fields, leading to these different names based on its applications. The historical contexts behind these names highlight the knot's importance in both maritime and textile industries.
